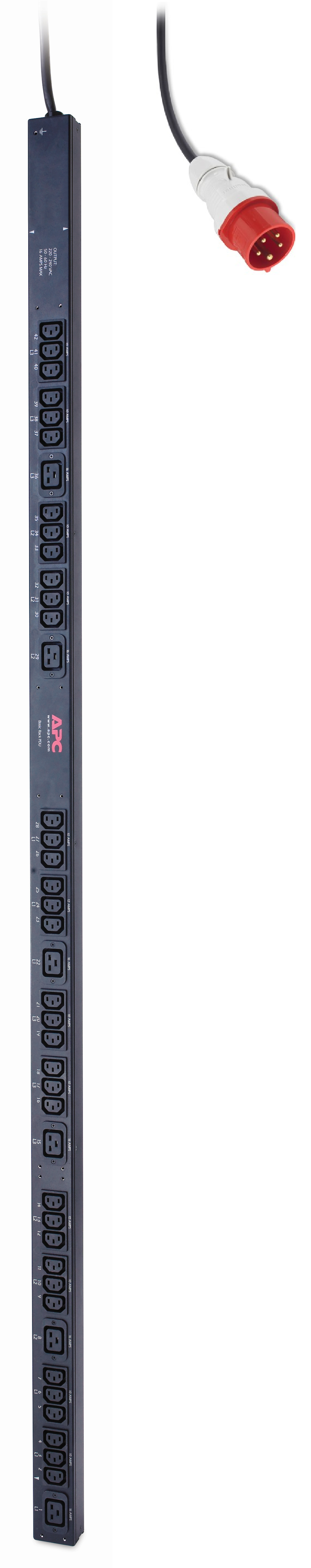

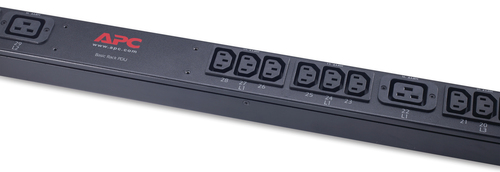

Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19
Model Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19Part no. AP7557EAN 731304254102
25 specifications
- Power11000 W
- Weight5.45 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity42 AC outlet(s)
- Cable length0.91 m
Overview
- Power
- 11000 W
- Weight
- 5.45 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 42 AC outlet(s)
- Cable length
- 0.91 m
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19
- Part number
- AP7557
- EAN / UPC
- 731304254102
- Also known as
- APC Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19 power distribution unit (PDU) 42 AC outlet(s) 0U Black
Specifications
25 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 42 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | IEC 309 16A 3P+N+PE |
| Output connections | (36) IEC 320 C13 (6) IEC 320 C19 |
Features
| Specification | Value |
|---|---|
| Cable length | 0.91 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 400 V |
| AC input frequency | 47/63 Hz |
| Nominal output voltage | 230 V |
| Load capacity | 11040 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum power | 11000 W |
Certificates
| Specification | Value |
|---|---|
| Certification | C-tick,CCC,CE,GOST,MIC,Queensland Australia,VD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 44 mm |
| Height | 1619 mm |
| Weight | 5.45 kg |
