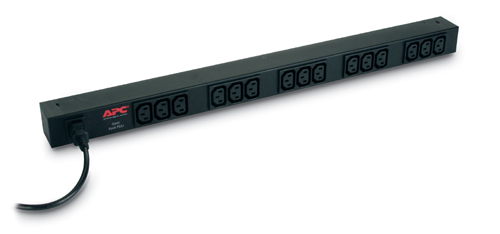

RACK PDU BASIC ZERO U 10A 230V
Model RACK PDU BASIC ZERO U 10A 230VPart no. AP9568EAN 7313042070546
21 specifications
- Power2300 W
- TypeSingle-phase
- Weight2 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity15 AC outlet(s)
Overview
- Power
- 2300 W
- Type
- Single-phase
- Weight
- 2 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 15 AC outlet(s)
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- RACK PDU BASIC ZERO U 10A 230V
- Part number
- AP9568
- EAN / UPC
- 7313042070546, 731304207047, 731304207054, 4053162266223 +2 more
- Also known as
- APC RACK PDU BASIC ZERO U 10A 230V power distribution unit (PDU) 15 AC outlet(s) 0U Black
Specifications
21 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 15 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| I/O ports | Output Connections - (15)IEC 320 C13 Input Connection Type - IEC-320 C14 |
Features
| Specification | Value |
|---|---|
| Cable length | 1.98 m |
Power
| Specification | Value |
|---|---|
| Load capacity | 2300 VA |
| Maximum input current per phase | 10 A |
| Maximum power | 2300 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 445 mm |
| Depth | 445 mm |
| Height | 609.6 mm |
| Weight | 2 kg |
