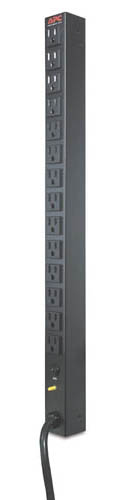

Rack PDU- Basic- Zero U
Model Rack PDU- Basic- Zero UPart no. AP9551EAN 5554442343317
19 specifications
- Weight2.19 kg
- ColourBlack
- Input connection typeNEMA L5-20P
- Cable length3.66 m
- Nominal input voltage120 V
- Operating temperature (T-T)0 - 45 °C
Overview
- Weight
- 2.19 kg
- Colour
- Black
- Input connection type
- NEMA L5-20P
- Cable length
- 3.66 m
- Nominal input voltage
- 120 V
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- Rack PDU- Basic- Zero U
- Part number
- AP9551
- EAN / UPC
- 5554442343317, 132017602592, 151903094860, 163120850310 +9 more
- Also known as
- APC Rack PDU- Basic- Zero U power distribution unit (PDU) Black
Specifications
19 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | NEMA L5-20P |
| Output connections | (14) NEMA 5-15R |
Features
| Specification | Value |
|---|---|
| Cable length | 3.66 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 120 V |
| AC input frequency | 50 - 60 Hz |
| Nominal output voltage | 120 V |
| Load capacity | 2400 VA |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 20 A |
Certificates
| Specification | Value |
|---|---|
| Certification | cUL,CSA,UL 1363,UL |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 44 mm |
| Depth | 44 mm |
| Height | 620 mm |
| Weight | 2.19 kg |
