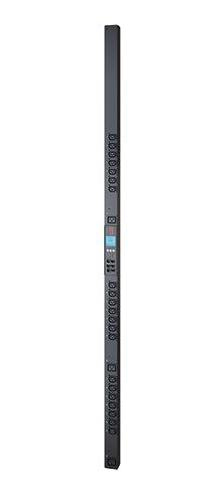

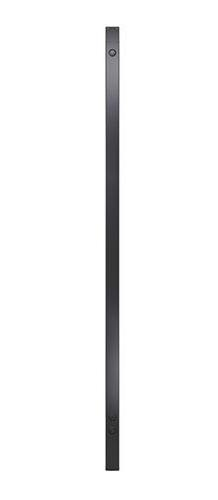

APC Rack PDU 2G

APC Rack PDU 2G

Model Rack PDU 2GPart no. AP8970EAN 7313043075564

30 specifications
  • Weight6.77 kg
  • ColourBlack
  • PDU typesMetered
  • AC outlets quantity24 AC outlet(s)
  • LED indicatorsYes
  • MonitoringCurrent
See all specifications

Overview

Weight
6.77 kg
Colour
Black
PDU types
Metered
AC outlets quantity
24 AC outlet(s)
LED indicators
Yes
Monitoring
Current
Brand
APC
Model
Rack PDU 2G
Part numbers
AP8970, AP8659NA3, AP8441, AP8870, AP8459NA3, AP8461 +2 more
EAN / UPC
7313043075564, 731304299523, 790658987807, 7313042995238 +12 more
Also known as
APC Rack PDU 2G power distribution unit (PDU) 24 AC outlet(s) Black

Specifications

30 specifications in 10 groups

Design

PDU typesMetered
Product colourBlack
DisplayLCD

Ports & interfaces

AC outlets quantity24 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Input connection typeNEMA L6-20P

Features

LED indicatorsYes
Cable length3 m

Management features

MonitoringCurrent

Power

Nominal input voltage200-230 V
AC input frequency50 - 60 Hz
Maximum current20 A
Nominal output voltage208 V
Maximum total current draw per phase16 A

Certificates

Compliance certificatesRoHS
CertificationEN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL Listed, VCCI Class A, VDE, REACH

Operational conditions

Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m

Weight & dimensions

Width56 mm
Depth51 mm
Height1829 mm
Weight6.77 kg

Packaging content

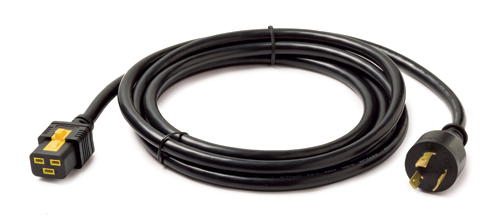

Packaging contentCAN Port Terminator, Installation guide, Locking input power cord, Rack Mounting brackets, Safety guide, Serial configuration cable

Packaging data

Package weight9.05 kg
Package width162 mm
Package depth117 mm
Package height2038 mm
