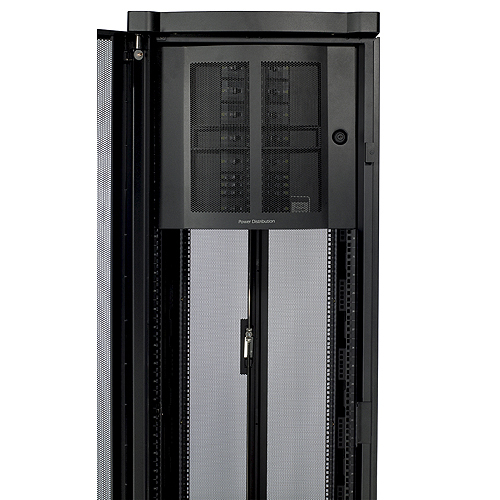

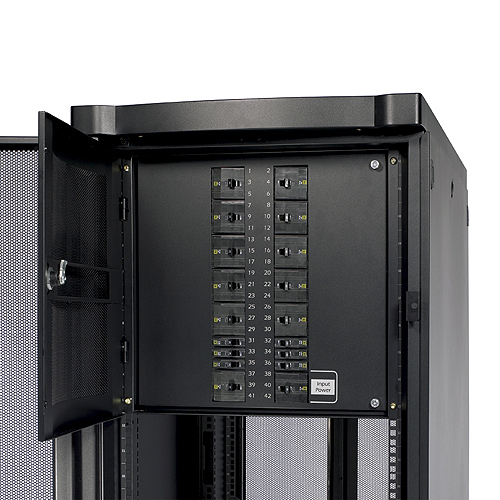

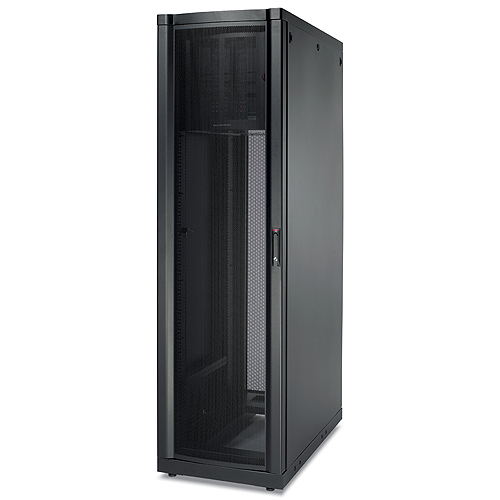

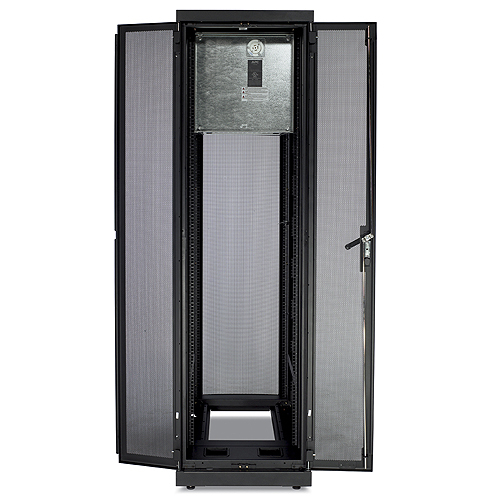

Rack Distribution Panel 208 V
Model Rack Distribution Panel 208 VPart no. PDRDPF10U-REAN 731304213352
15 specifications
- Weight190 kg
- ColourBlack
- Input connection typeIEC 309
- Nominal input voltage208 V
- Operating temperature (T-T)0 - 40 °C
- Width610 mm
Overview
- Weight
- 190 kg
- Colour
- Black
- Input connection type
- IEC 309
- Nominal input voltage
- 208 V
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 610 mm
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- Rack Distribution Panel 208 V
- Part number
- PDRDPF10U-R
- EAN / UPC
- 731304213352, 7313042133524
- Also known as
- APC Rack Distribution Panel 208 V power distribution unit (PDU) Black
Specifications
15 specifications in 5 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | IEC 309 |
| I/O ports | cUL, UL. |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 208 V |
| AC input frequency | 60 Hz |
| Load capacity | 28800 VA |
| Maximum input current per phase | 80 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 610 mm |
| Depth | 1072 mm |
| Height | 2060 mm |
| Weight | 190 kg |
