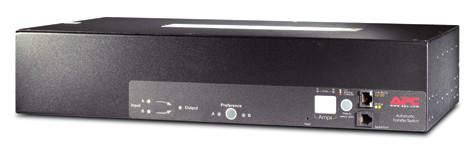

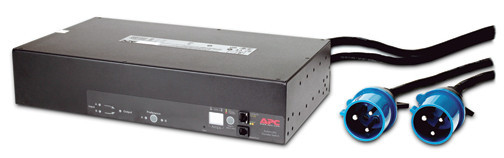

APC Rack ATS, 230V, 32A, IEC309 in, (16)C13 (2)C19 out

APC Rack ATS, 230V, 32A, IEC309 in, (16)C13 (2)C19 out

Model Rack ATS, 230V, 32A, IEC309 in, (16)C13 (2)C19 outPart no. AP7724EAN 7313042558334

24 specifications
  • Weight6.86 kg
  • ColourBlack
  • MountingHorizontal
  • Input connection typeIEC 309 32A 2P+E
  • Cable length2.44 m
  • Nominal input voltage230 V
See all specifications

Overview

Weight
6.86 kg
Colour
Black
Mounting
Horizontal
Input connection type
IEC 309 32A 2P+E
Cable length
2.44 m
Nominal input voltage
230 V
Brand
APC
Model
Rack ATS, 230V, 32A, IEC309 in, (16)C13 (2)C19 out
Part number
AP7724
EAN / UPC
7313042558334, 731304123835, 731304255833, 4053162366848 +2 more
Also known as
APC Rack ATS, 230V, 32A, IEC309 in, (16)C13 (2)C19 out power distribution unit (PDU) Black

Specifications

24 specifications in 8 groups

Design

MountingHorizontal
Product colourBlack

Ports & interfaces

Input connection typeIEC 309 32A 2P+E

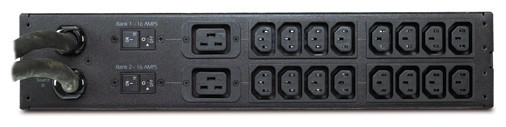

Output connections16 x IEC 320 C13 2 x IEC 320 C19

Features

Cable length2.44 m

Power

Nominal input voltage230 V
AC input frequency50 - 60 Hz
Maximum current32 A
Nominal output voltage230 V
Maximum input current per phase32 A
Maximum total current draw per phase32 A

Certificates

CertificationEN 55022 Class A, FCC Part 15 Class A RoHS 7b

Operational conditions

Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%

Weight & dimensions

Width432 mm
Depth236 mm
Height88 mm
Weight6.86 kg

Packaging data

Package weight9.36 kg
Package width613 mm
Package depth356 mm
Package height184 mm
