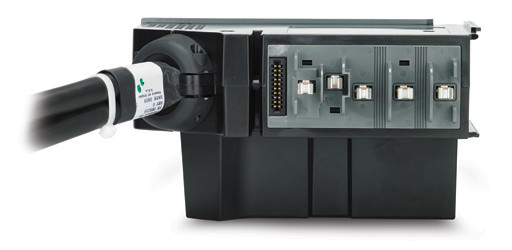

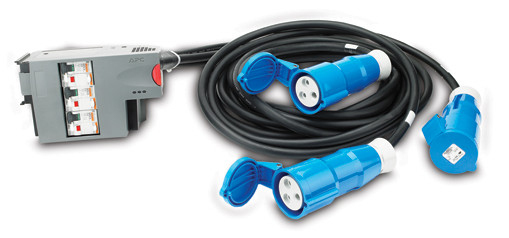

Power Distribution Modular 3x1 POLE 3 Wire 32A
Model Power Distribution Modular 3x1 POLE 3 Wire 32APart no. PDM2332IEC-3P30R-2EAN 731304265641
13 specifications
- Weight9.5 kg
- Input connection typeIEC 309 32A 3P+N+PE
- Nominal input voltage400 V
Overview
- Weight
- 9.5 kg
- Input connection type
- IEC 309 32A 3P+N+PE
- Nominal input voltage
- 400 V
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- Power Distribution Modular 3x1 POLE 3 Wire 32A
- Part number
- PDM2332IEC-3P30R-2
- EAN / UPC
- 731304265641, 731304265658, 4054842140192, 7313042656580
- Also known as
- APC Power Distribution Modular 3x1 POLE 3 Wire 32A power distribution unit (PDU)
Specifications
13 specifications in 5 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | IEC 309 32A 3P+N+PE |
| Output connections | 3 x IEC 309 32A |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 400 V |
| AC input frequency | 50 Hz |
| Nominal output voltage | 400 V |
| Maximum input current per phase | 32 A |
| Maximum total current draw per phase | 32 A |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, VDE |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 9.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 10.4 kg |
| Package width | 432 mm |
| Package depth | 406 mm |
| Package height | 254 mm |
