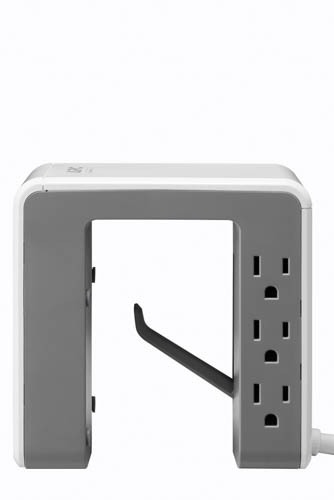

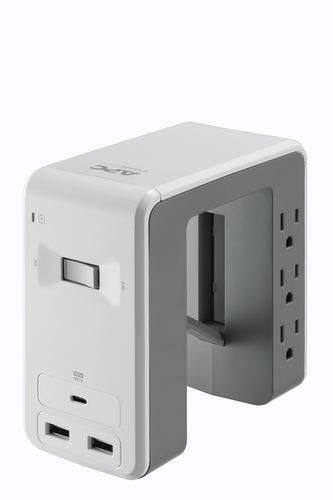

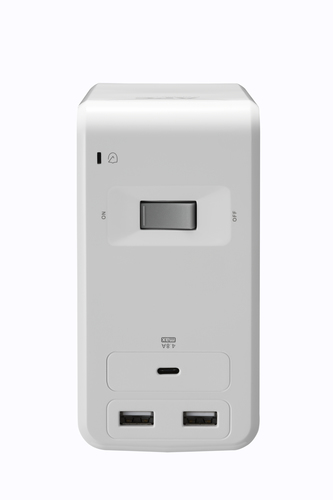

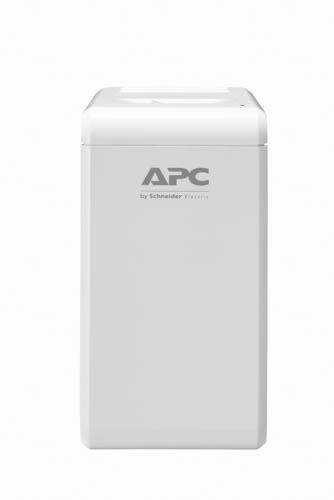

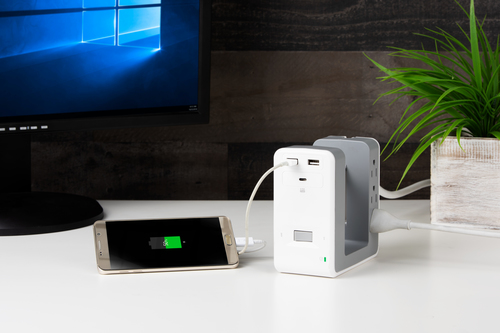

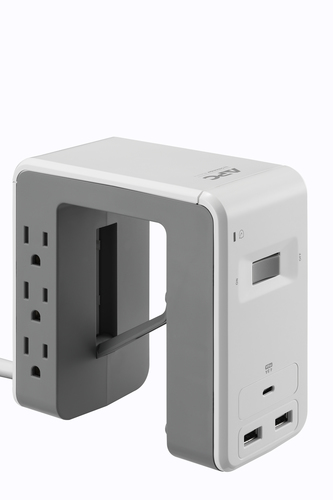

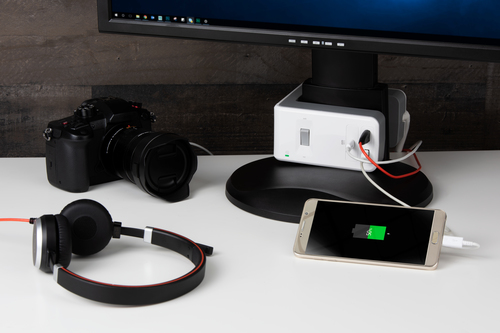

PE6U21W power distribution unit (PDU) 6 AC outlet(s) White
Model PE6U21WEAN 731304343721
33 specifications
- Weight690 g
- ColourWhite

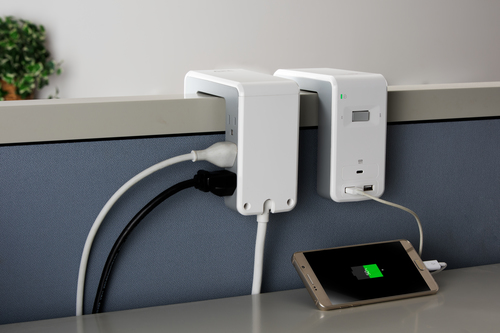

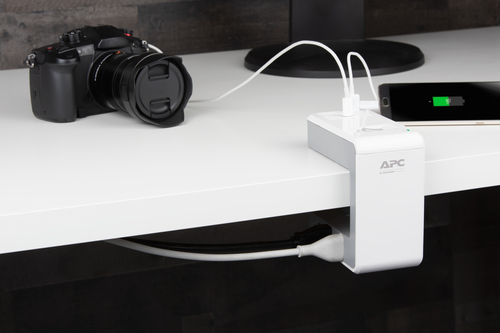

- MountingHorizontal/Vertical
- AC outlets quantity6 AC outlet(s)
- LED indicatorsYes
- Nominal input voltage120 V
Overview
- Weight
- 690 g
- Colour
- White
- Mounting
- Horizontal/Vertical
- AC outlets quantity
- 6 AC outlet(s)
- LED indicators
- Yes
- Nominal input voltage
- 120 V
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- PE6U21W
- Part number
- PE6U21W
- EAN / UPC
- 731304343721
- Also known as
- APC PE6U21W power distribution unit (PDU) 6 AC outlet(s) White
Specifications
33 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Mounting | Horizontal/Vertical |
| Product colour | White |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 6 AC outlet(s) |
| Power plug | NEMA 5-15P |
| AC outlet types | NEMA 5–15R |
| USB ports quantity | 3 |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Cable length | 1.83 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 120 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 15 A |
| Surge energy rating | 1080 J |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 69 mm |
| Depth | 132 mm |
| Height | 135 mm |
| Weight | 690 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 770 g |
| Package width | 120 mm |
| Package depth | 171 mm |
| Package height | 138 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 318 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 190 mm |
| Master (outer) case gross weight | 5.48 kg |
