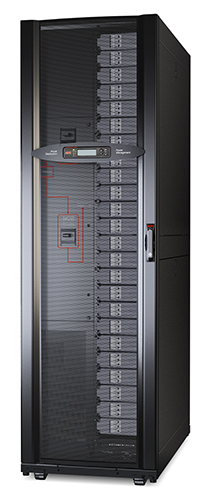

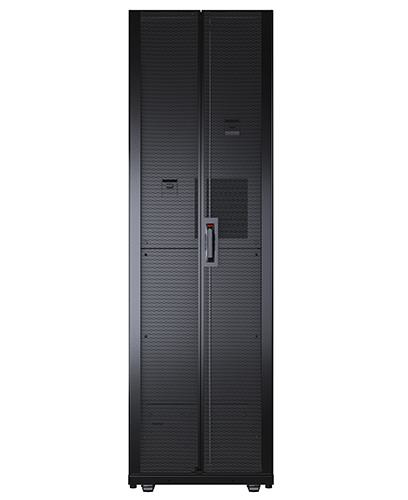

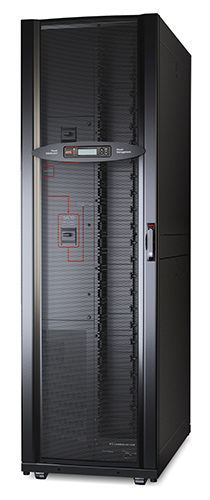

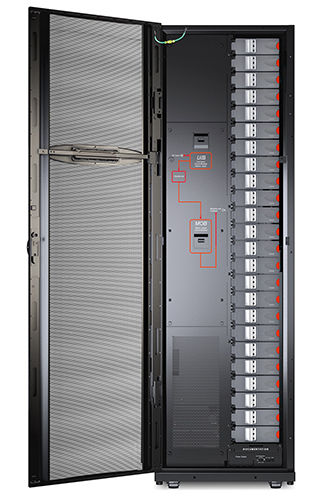

APC PDPM150G6F power distribution unit (PDU) Black

APC PDPM150G6F power distribution unit (PDU) Black

Model PDPM150G6FEAN 731304295396

26 specifications

Weight836 kg
ColourBlack
PDU typesModular
Nominal input voltage480 V
Operating temperature (T-T)-5 - 40 °C
Width600 mm

See all specifications

Overview

Weight: 836 kg
Colour: Black
PDU types: Modular
Nominal input voltage: 480 V
Operating temperature (T-T): -5 - 40 °C
Width: 600 mm

Brand: APC
Category: Power Distribution Units (PDUs)
Model: PDPM150G6F
Part number: PDPM150G6F
EAN / UPC: 731304295396, 7313042953962
Also known as: APC PDPM150G6F power distribution unit (PDU) Black

Specifications

26 specifications in 6 groups

Design

Specification	Value
PDU types	Modular
Mounting	Vertical
Product colour	Black

Power

Specification	Value
Nominal input voltage	480 V
AC input frequency	60 Hz
Maximum current	178 A
Nominal output voltage	208 V
Output voltage	208 V
Load capacity	144000 VA
Maximum input current per phase	178 A
Power protection features	Overload

Certificates

Specification	Value
Certification	cUL, CSA, OSHPD, UL 60950-1

Operational conditions

Specification	Value
Operating temperature (T-T)	-5 - 40 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 2952.6 m
Non-operating altitude	0 - 15000 m

Weight & dimensions

Specification	Value
Width	600 mm
Depth	1069 mm
Height	2007 mm
Weight	836 kg

Packaging data

Specification	Value
Package weight	882 kg
Package width	1016 mm
Package depth	1219 mm
Package height	2153 mm
