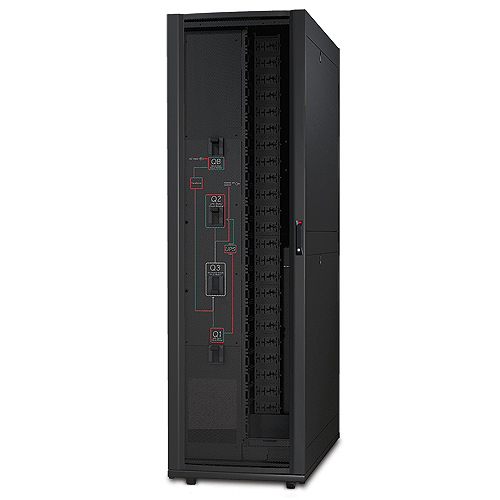

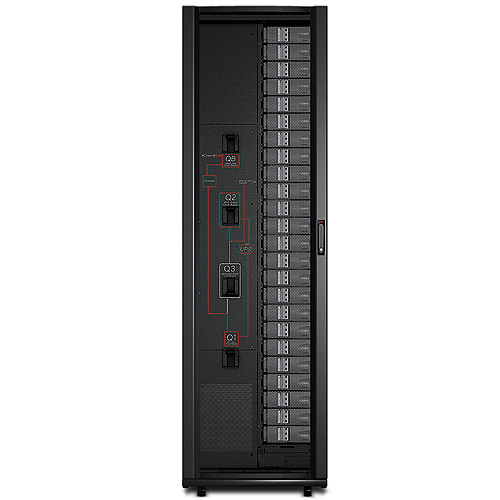

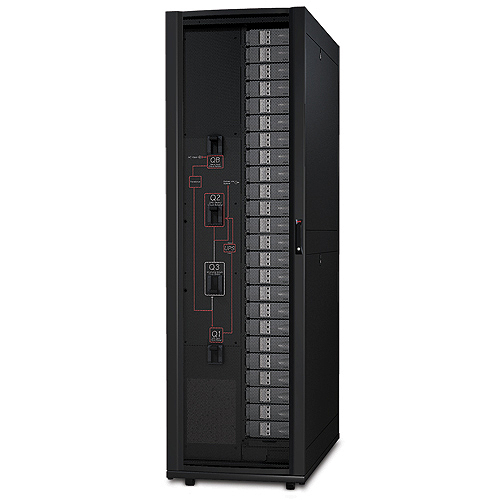

APC PDPM100G6F-M power distribution unit (PDU) Black

APC PDPM100G6F-M power distribution unit (PDU) Black

Model PDPM100G6F-MEAN 731304280880

25 specifications
  • Weight818.2 kg
  • ColourBlack
  • PDU typesBasic
  • Nominal input voltage480 V
  • Operating temperature (T-T)0 - 40 °C
  • Width600 mm
See all specifications

Overview

Weight
818.2 kg
Colour
Black
PDU types
Basic
Nominal input voltage
480 V
Operating temperature (T-T)
0 - 40 °C
Width
600 mm
Brand
APC
Model
PDPM100G6F-M
Part number
PDPM100G6F-M
EAN / UPC
731304280880, 7313042808804
Also known as
APC PDPM100G6F-M power distribution unit (PDU) Black

Specifications

25 specifications in 6 groups

Design

PDU typesBasic
Product colourBlack

Power

Nominal input voltage480 V
AC input frequency60 Hz
Maximum current159 A
Nominal output voltage120-208 V
Load capacity100000 VA
Maximum input current per phase146 A
Maximum total current draw per phase278 A

Certificates

Compliance certificatesRoHS
CertificationCSA C22.2 No. 60950-1-03,FCC 15 B,UL 60950-1

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)0 - 95 °C
Operating relative humidity (H-H)-15 - 40%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 4500 m

Weight & dimensions

Width600 mm
Depth1070 mm
Height2007 mm
Weight818.2 kg

Packaging data

Package weight863.6 kg
Package width1016 mm
Package depth1220 mm
Package height2150 mm
