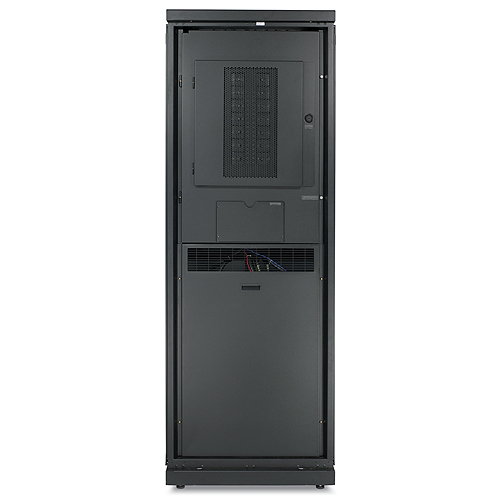

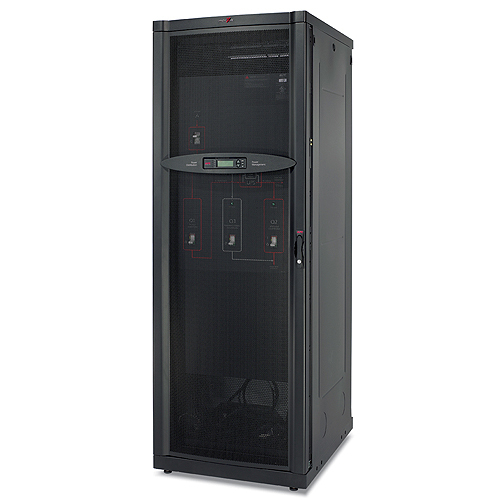

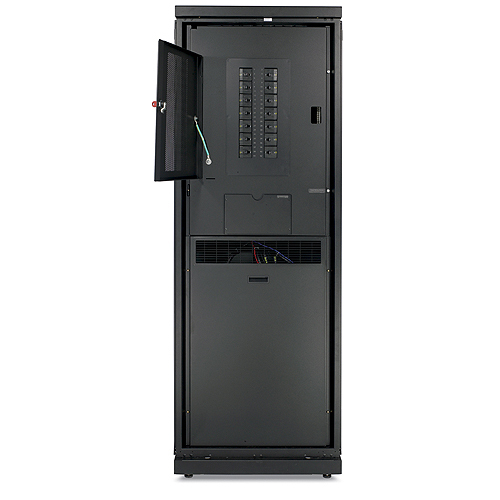

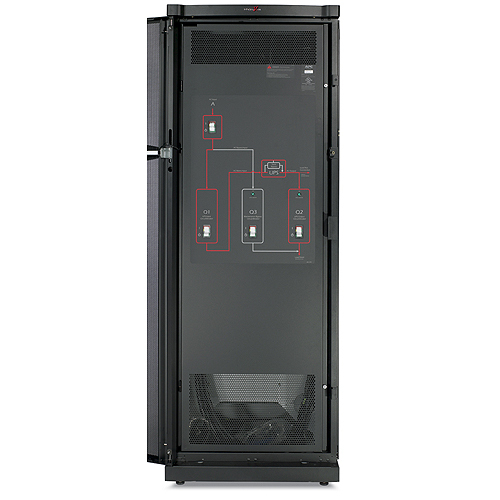

APC PD80F6FK1-M power distribution unit (PDU) Black

APC PD80F6FK1-M power distribution unit (PDU) Black

Model PD80F6FK1-MEAN 731304210696

23 specifications

Weight740 kg
ColourBlack
PDU typesBasic
LED indicatorsYes
Nominal input voltage208 V
Operating temperature (T-T)0 - 40 °C

See all specifications

Overview

Weight: 740 kg
Colour: Black
PDU types: Basic
LED indicators: Yes
Nominal input voltage: 208 V
Operating temperature (T-T): 0 - 40 °C

Brand: APC
Category: Power Distribution Units (PDUs)
Model: PD80F6FK1-M
Part number: PD80F6FK1-M
EAN / UPC: 731304210696, 7313042106962
Also known as: APC PD80F6FK1-M power distribution unit (PDU) Black

Specifications

23 specifications in 7 groups

Design

Specification	Value
PDU types	Basic
Product colour	Black

Features

Specification	Value
LED indicators	Yes

Power

Specification	Value
Nominal input voltage	208 V
Nominal output voltage	208 V
Load capacity	80000 VA
Maximum input current per phase	312 A
Maximum total current draw per phase	277.5 A

Certificates

Specification	Value
Certification	cUL / UL

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 999.9 m
Non-operating altitude	0 - 9000 m

Weight & dimensions

Specification	Value
Width	737 mm
Depth	914 mm
Height	2057 mm
Weight	740 kg

Packaging data

Specification	Value
Package weight	750 kg
Package width	914 mm
Package depth	1219 mm
Package height	2184 mm
