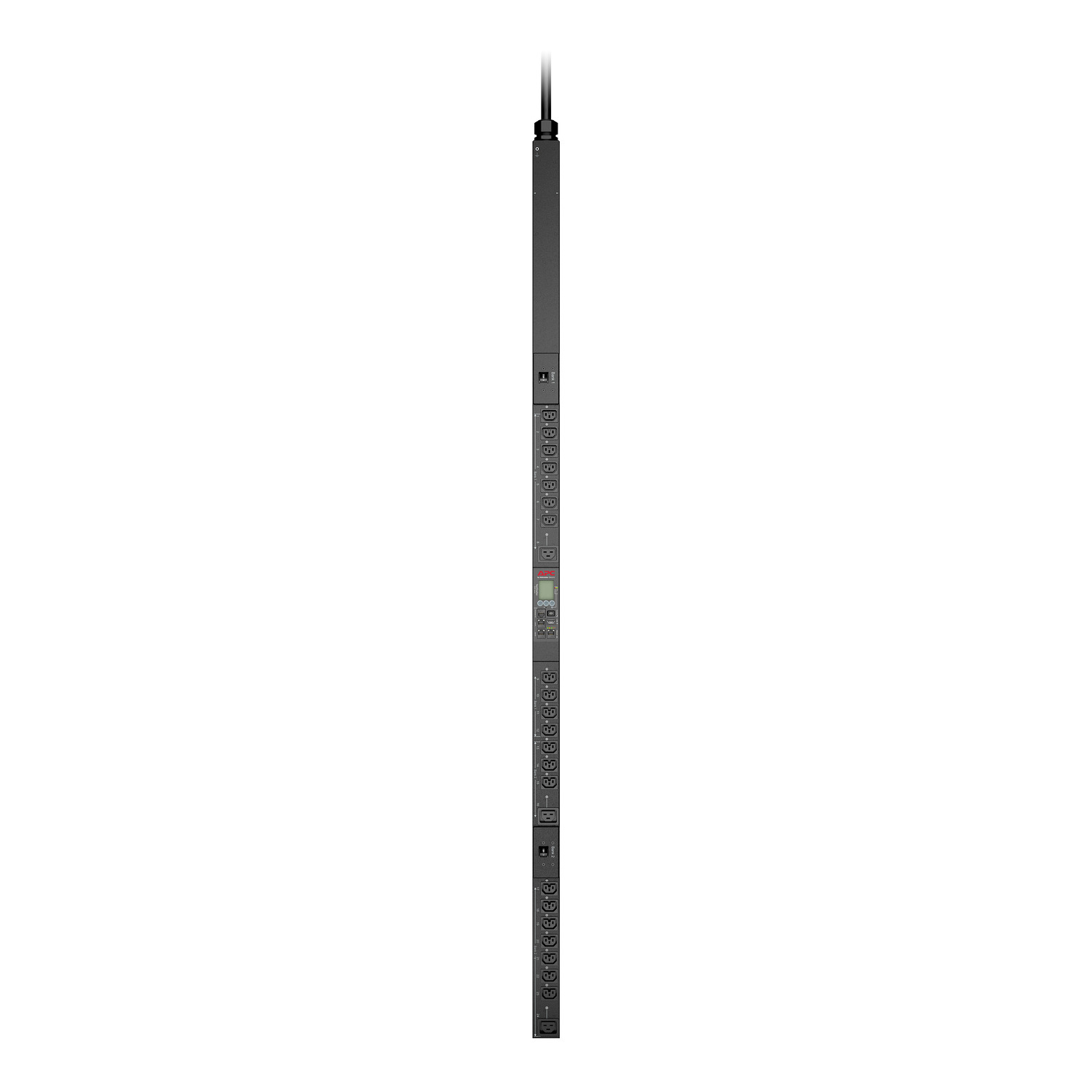

NetShelter™ 9000
Model NetShelter™ 9000Part no. APDU9941EAN 731304356264
44 specifications
- TypeSingle-phase
- Weight8.5 kg
- ColourBlack
- PDU typesSwitched
- AC outlets quantity24 AC outlet(s)
- Cable length3 m
Overview
- Type
- Single-phase
- Weight
- 8.5 kg
- Colour
- Black
- PDU types
- Switched
- AC outlets quantity
- 24 AC outlet(s)
- Cable length
- 3 m
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- NetShelter™ 9000
- Part number
- APDU9941
- EAN / UPC
- 731304356264
- Also known as
- APC Rack PDU, 9000 switched, 0U, 30A, 200V and 208V, 21 C13 and C15, 3 C19 and C21 sockets
Specifications
44 specifications in 12 groups
Design
| Specification | Value |
|---|---|
| PDU types | Switched |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | NEMA L6-30P |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
| Input connection type | NEMA L6-30P |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 208; 200 V |
| Maximum current | 30 A |
| Nominal output voltage | 200 - 208 V |
| Output voltage | 200 V; 208 V |
| Load capacity | 4992 VA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, REACH, WEEE |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Certification | cUL listed; FCC part 15 class A; PSE |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 60 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55 mm |
| Depth | 46 mm |
| Height | 1829 mm |
| Weight | 8.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 10 kg |
| Package width | 165 mm |
| Package depth | 124 mm |
| Package height | 2040 mm |
Technical details
| Specification | Value |
|---|---|
| Packaging recycled materials | Recycled cardboard |
| Preferred mounting position | no preference |
| Removable battery | Yes |
| Packaging without single use plastic | No |
| SCIP number | 31346aed-552c-4a16-81d9-e683a383b6da |
| Sustainable packaging | No |
| Take-back system | No |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | India |
| Customs product code (TARIC) | 8537109899 |
| Total carbon footprint (kg of CO2e) | 2641.6506196672 |
