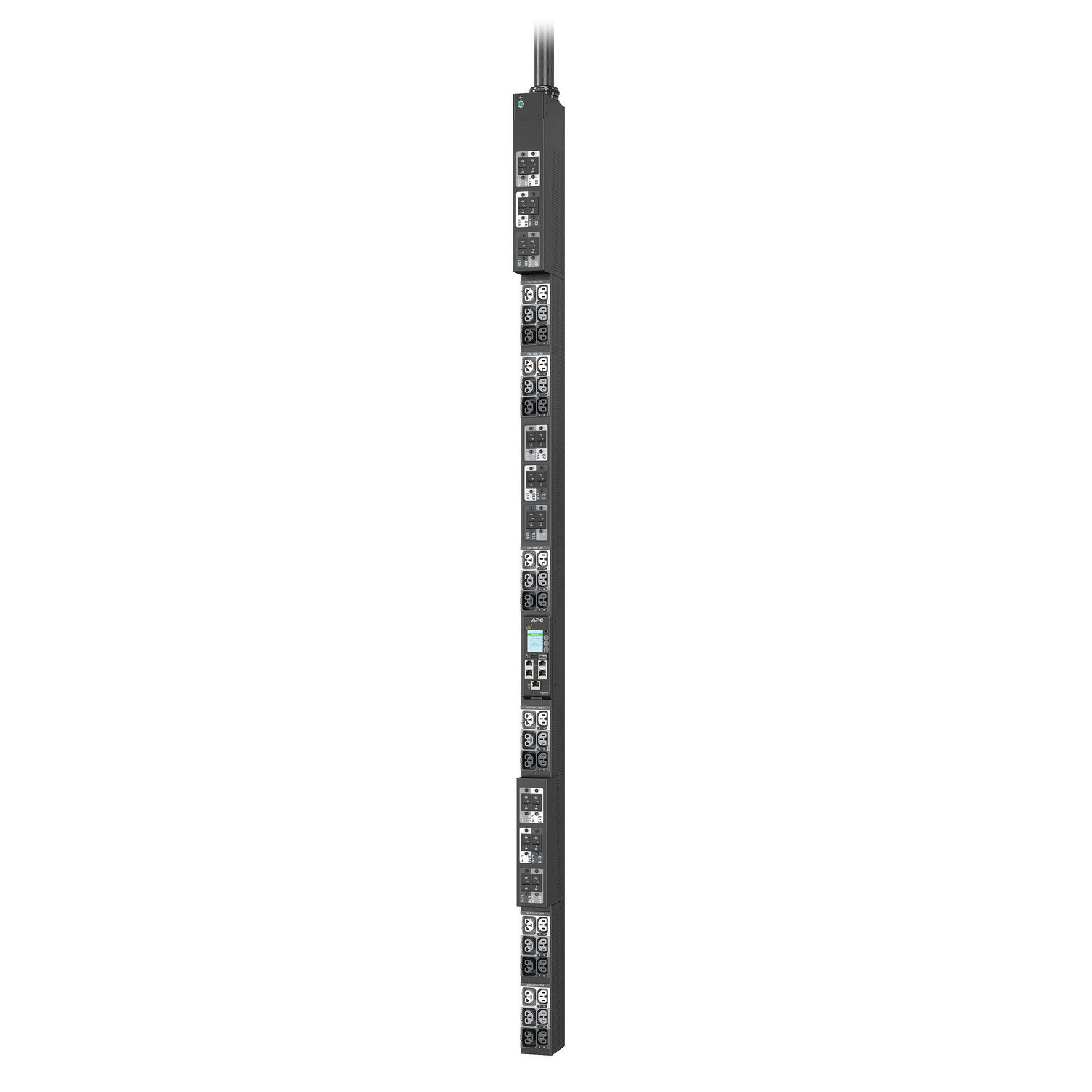

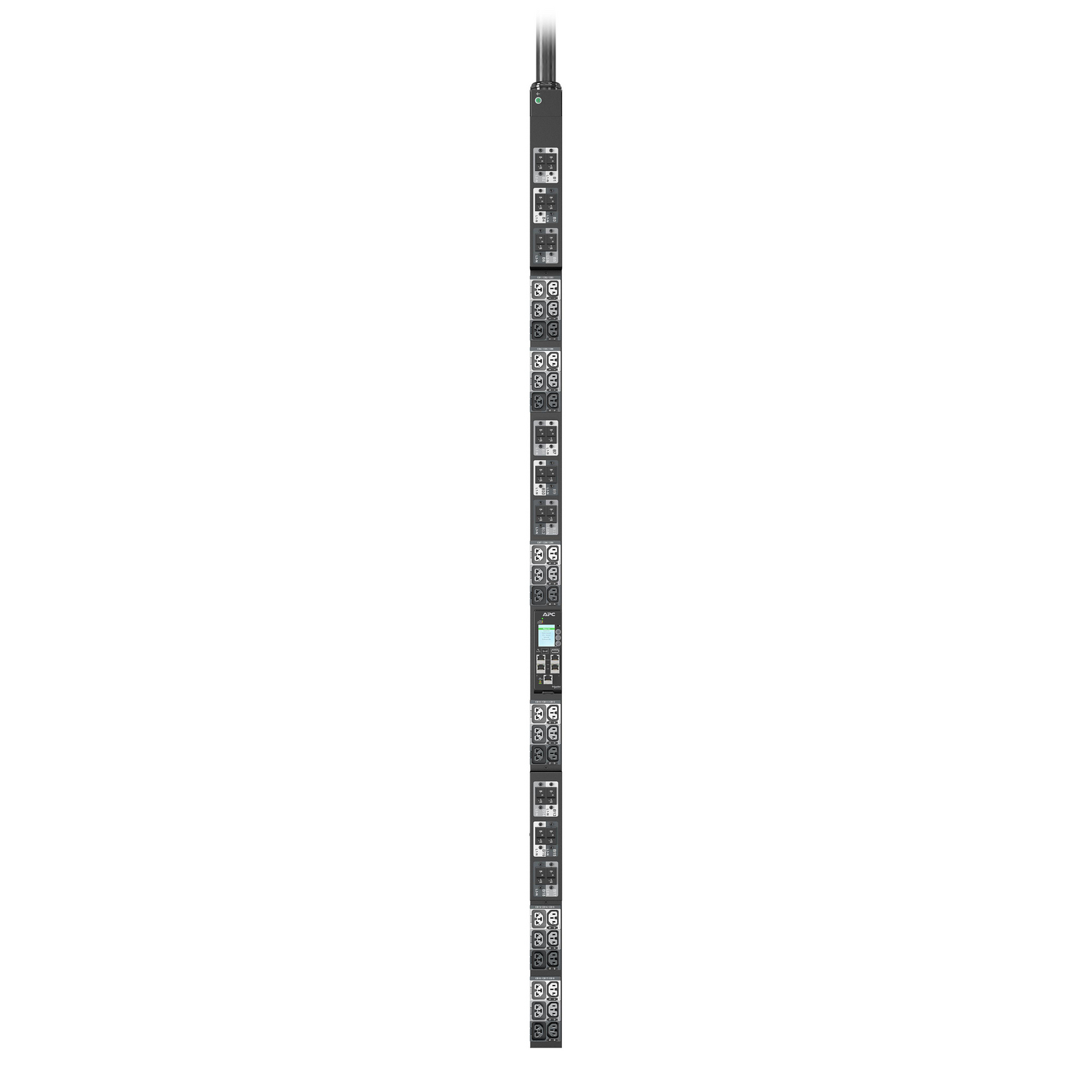

NetShelter Rack PDU Advanced Metered, 0U, 3 Phase, 415V, 69.0kVA 100A, 36 Outlets
Model NetShelter Rack PDU Advanced Metered, 0U, 3 Phase, 415V, 69.0kVA 100A, 36 OutletsPart no. APDU11550MEEAN 731304775621
40 specifications
- TypeThree-phase
- Weight18.8 kg
- ColourBlack
- PDU typesMetered
- AC outlets quantity18 AC outlet(s)
- International Protection (IP) codeIP67
Overview
- Type
- Three-phase
- Weight
- 18.8 kg
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 18 AC outlet(s)
- International Protection (IP) code
- IP67
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- NetShelter Rack PDU Advanced Metered, 0U, 3 Phase, 415V, 69.0kVA 100A, 36 Outlets
- Part number
- APDU11550ME
- EAN / UPC
- 731304775621
- Also known as
- APC NetShelter Rack PDU Advanced Metered, 0U, 3 Phase, 415V, 69.0kVA 100A, 36 Outlets
Specifications
40 specifications in 12 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 18 AC outlet(s) |
| Power plug | IEC309 |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Input connection type | IEC 309 100 A |
Features
| Specification | Value |
|---|---|
| International Protection (IP) code | IP67 |
Management features
| Specification | Value |
|---|---|
| Management platform | NMC3 |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 415 3 phases |
| Maximum current | 100 A |
| Output voltage | 415 V AC 3 phases |
| Load capacity | 69000 VA |
| Number of phases | 3 |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, REACH, WEEE |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Sustainability
| Specification | Value |
|---|---|
| Doesn't contain | Silicone |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating altitude | 0 - 15240 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 59 mm |
| Depth | 87 mm |
| Height | 1750 mm |
| Weight | 18.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 24.6 kg |
| Package width | 350 mm |
| Package depth | 165 mm |
| Package height | 1980 mm |
Technical details
| Specification | Value |
|---|---|
| Packaging recycled materials | Recycled cardboard |
| Preferred mounting position | no preference |
| Packaging without single use plastic | Yes |
| SCIP number | 7547f066-9302-46d9-96e9-461928dd6901 |
| Sustainable packaging | No |
| Take-back system | No |
Logistics data
| Specification | Value |
|---|---|
| Customs product code (TARIC) | 8537109899 |
