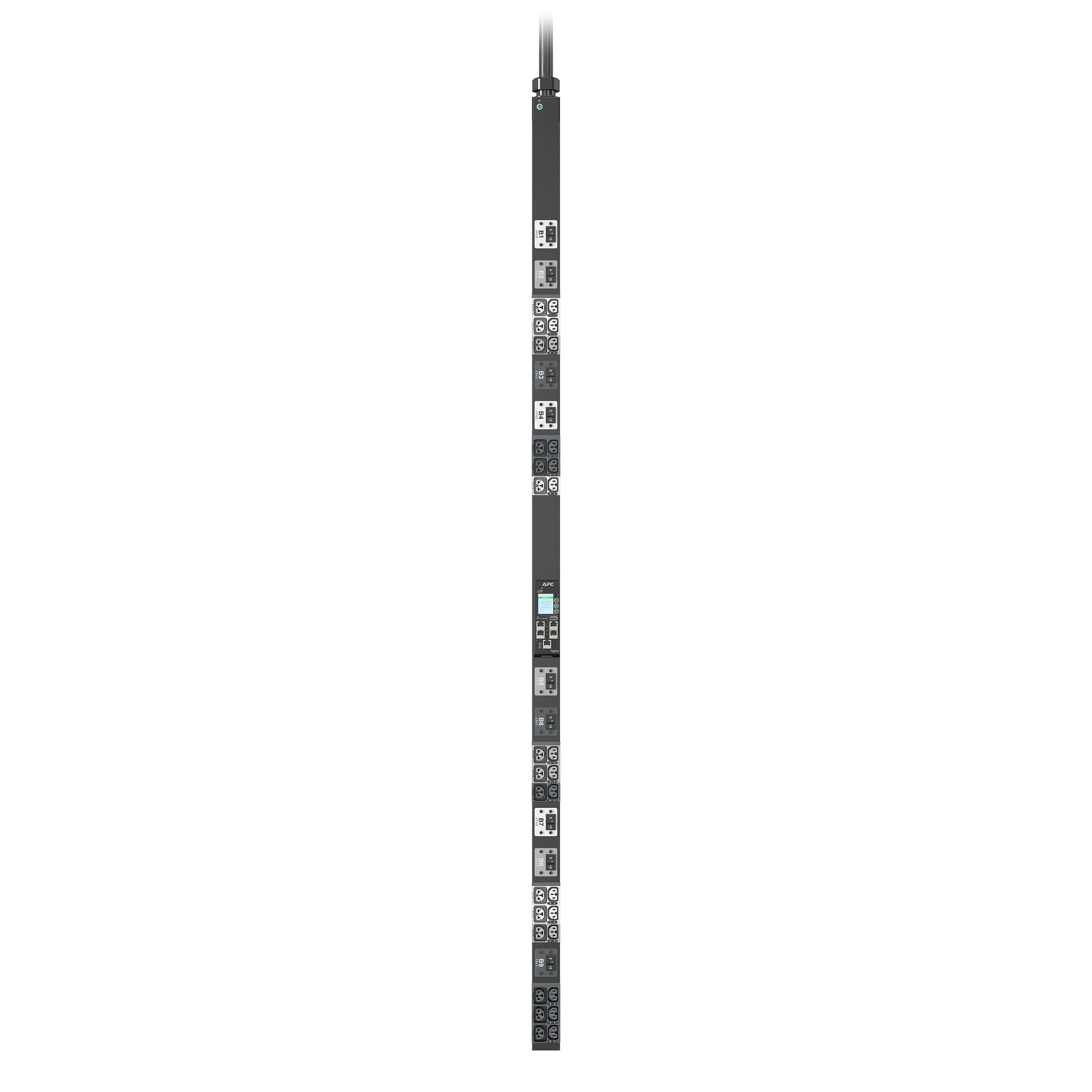

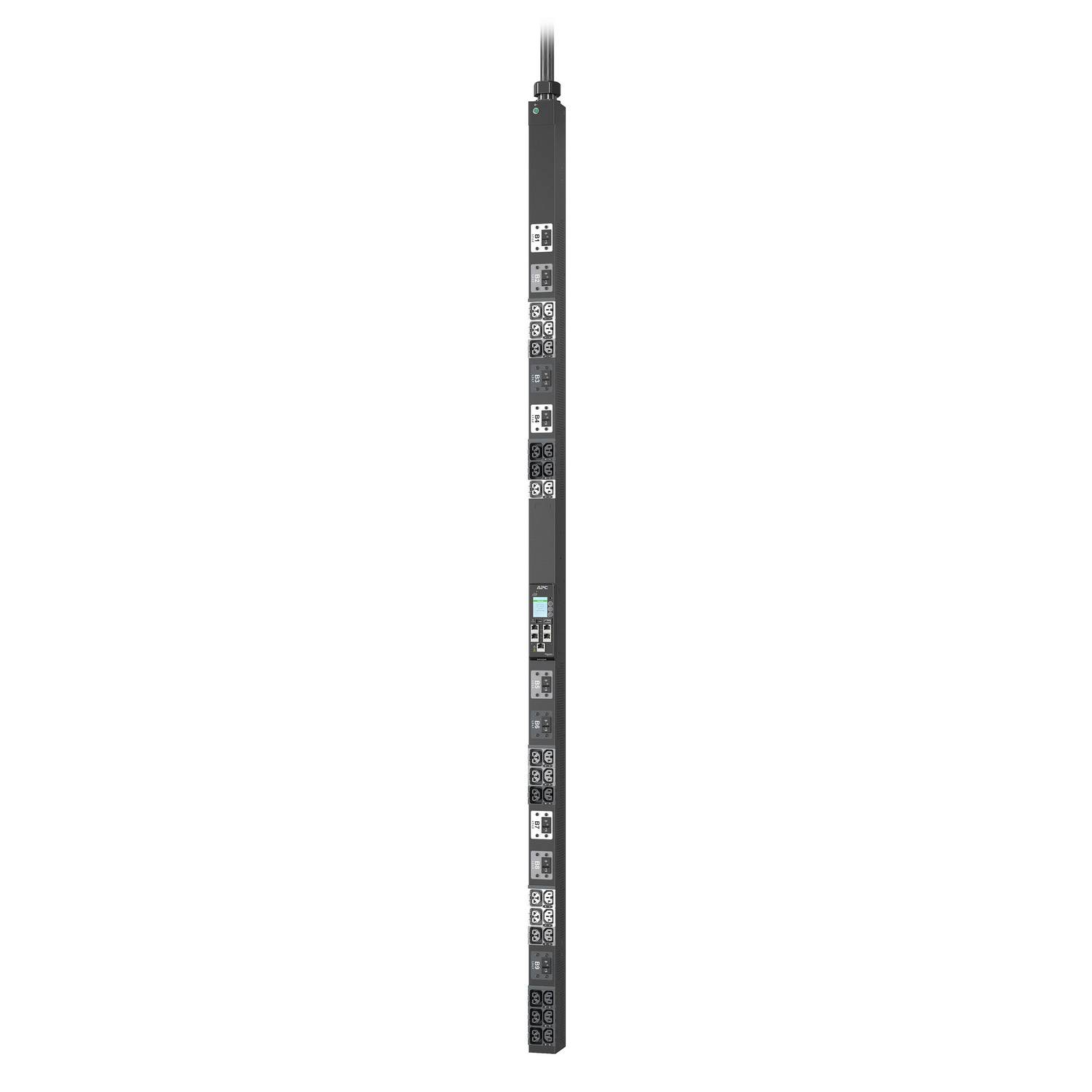

NetShelter Rack PDU Advanced Metered, 0U, 3 Phase, 208V, 28.8kVA 100A, 30 Outlets
Model NetShelter Rack PDU Advanced Metered, 0U, 3 Phase, 208V, 28.8kVA 100A, 30 OutletsPart no. APDU11551ME
28 specifications
- TypeThree-phase
- Weight14 kg
- ColourBlack
- PDU typesMetered
- AC outlets quantity30 AC outlet(s)
- International Protection (IP) codeIP67
Overview
- Type
- Three-phase
- Weight
- 14 kg
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 30 AC outlet(s)
- International Protection (IP) code
- IP67
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- NetShelter Rack PDU Advanced Metered, 0U, 3 Phase, 208V, 28.8kVA 100A, 30 Outlets
- Part number
- APDU11551ME
- Also known as
- APC NetShelter Rack PDU Advanced Metered, 0U, 3 Phase, 208V, 28.8kVA 100A, 30 Outlets
Specifications
28 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 30 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C15 coupler, C13 coupler, C19 coupler, C21 coupler |
Features
| Specification | Value |
|---|---|
| International Protection (IP) code | IP67 |
Management features
| Specification | Value |
|---|---|
| Management platform | NMC3 |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 208 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 100 A |
| Output voltage | 208 V |
| Load capacity | 28800 VA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating altitude | 0 - 15240 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 75 mm |
| Height | 1900 mm |
| Weight | 14 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 19.8 kg |
| Package width | 350 mm |
| Package depth | 165 mm |
| Package height | 2110 mm |
