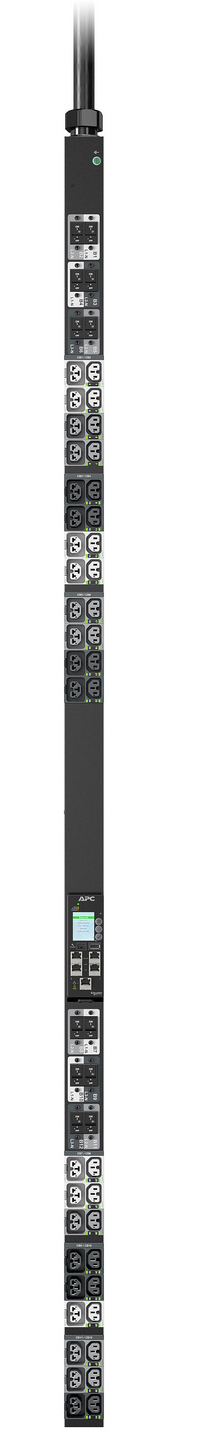

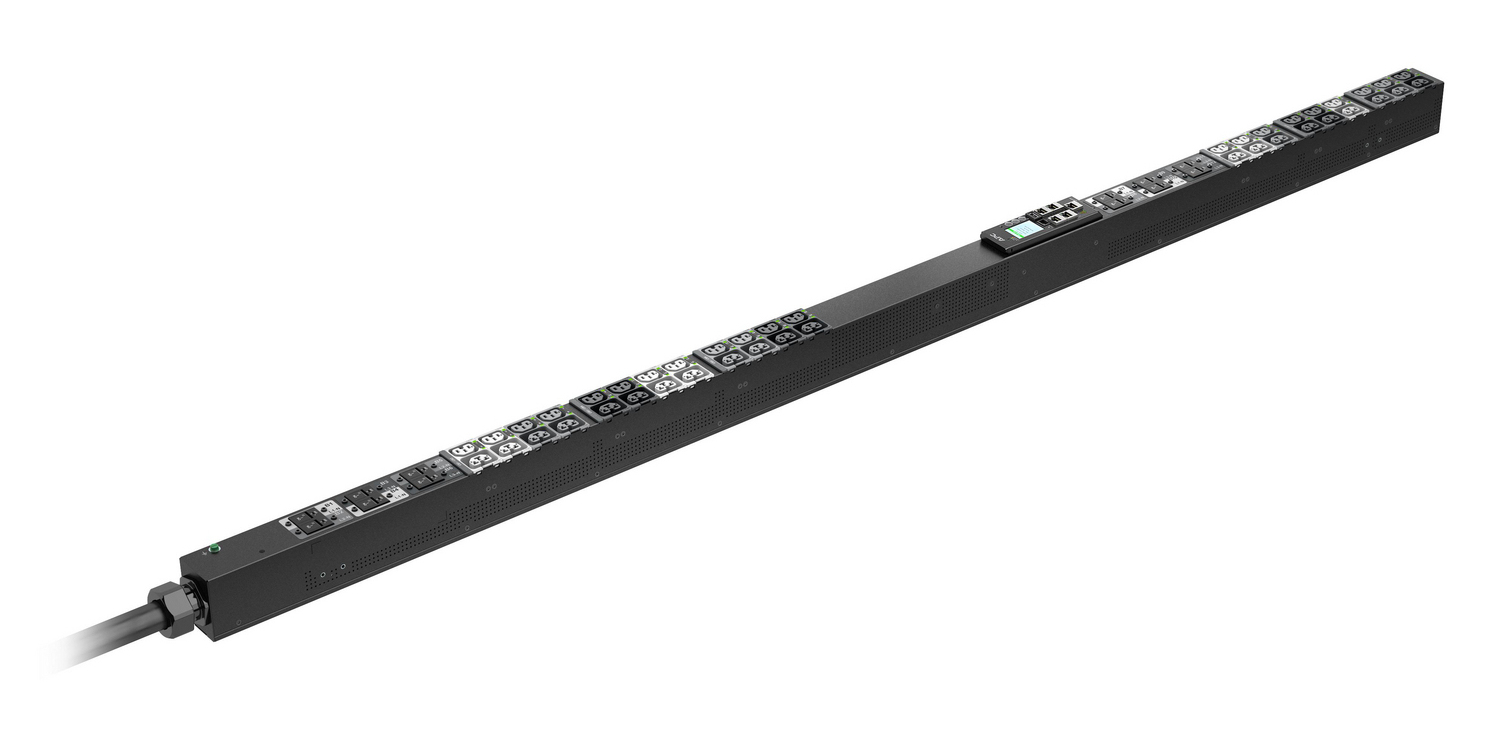

NetShelter Rack PDU Advanced Gen 2, Switched Metered Outlet,3Phase, 43.5kW 400V 63A or 34.6kW 415V 60A, 560P6, 42 Outlet
Model NetShelter Rack PDU Advanced Gen 2, Switched Metered Outlet,3Phase, 43.5kW 400V 63A or 34.6kW 415V 60A, 560P6, 42 OutletPart no. APDU11450SMEAN 731304752790
37 specifications
- TypeThree-phase
- Weight12.7 kg
- ColourBlack
- PDU typesMetered
- AC outlets quantity42 AC outlet(s)
- Cable length3 m
Overview
- Type
- Three-phase
- Weight
- 12.7 kg
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 42 AC outlet(s)
- Cable length
- 3 m
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- NetShelter Rack PDU Advanced Gen 2, Switched Metered Outlet,3Phase, 43.5kW 400V 63A or 34.6kW 415V 60A, 560P6, 42 Outlet
- Part number
- APDU11450SM
- EAN / UPC
- 731304752790
- Also known as
- APC NetShelter Rack PDU Advanced Gen 2, Switched Metered Outlet,3Phase, 43.5kW 400V 63A or 34.6kW 415V 60A, 560P6, 42 Outlet
Specifications
37 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Type | Three-phase |
| Rack capacity | 0U |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 42 AC outlet(s) |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Ethernet LAN (RJ-45) ports | 5 |
| USB ports quantity | 1 |
| Input connection type | IEC 60309 60 A 3P + N + PE |
Features
| Specification | Value |
|---|---|
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Management platform | NMC3 |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 415 3 phases |
| AC input frequency | 50/60 Hz |
| Maximum current | 60 A |
| Nominal output voltage | 400 V |
| Output voltage | 240 V |
| Load capacity | 34600 VA |
| Number of phases | 3 |
| Battery replacement accessibility | Non-removable |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, REACH, WEEE |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 75 mm |
| Height | 1826 mm |
| Weight | 12.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 17 kg |
| Package width | 132 mm |
| Package depth | 262 mm |
| Package height | 2110 mm |
Technical details
| Specification | Value |
|---|---|
| Preferred mounting position | no preference |
| Removable battery | No |
| Packaging without single use plastic | No |
| SCIP number | 31346aed-552c-4a16-81d9-e683a383b6da |
| Sustainable packaging | No |
| Take-back system | No |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United States |
| Customs product code (TARIC) | 8537109899 |
