NetShelter 9000
Model NetShelter 9000Part no. APDU9981NA3EAN 731304404255
31 specifications
- Weight5.55 kg
- ColourBlack
- PDU typesSwitched
- AC outlets quantity24 AC outlet(s)
- Nominal input voltage200 V
- Operating temperature (T-T)-5 - 60 °C
Overview
- Weight
- 5.55 kg
- Colour
- Black
- PDU types
- Switched
- AC outlets quantity
- 24 AC outlet(s)
- Nominal input voltage
- 200 V
- Operating temperature (T-T)
- -5 - 60 °C
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- NetShelter 9000
- Part numbers
- APDU9981NA3, APDU9959J, APDU9961, APDU9965, APDU9959NA3
- EAN / UPC
- 731304404255, 731304412922, 731304356318, 731304356325 +1 more
- Also known as
- APC Rack PDU 9000 Switched, ZeroU, 16A, 100-240V, (21) C13/C15 & (3) C19/C21, Japan
Specifications
31 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Switched |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |

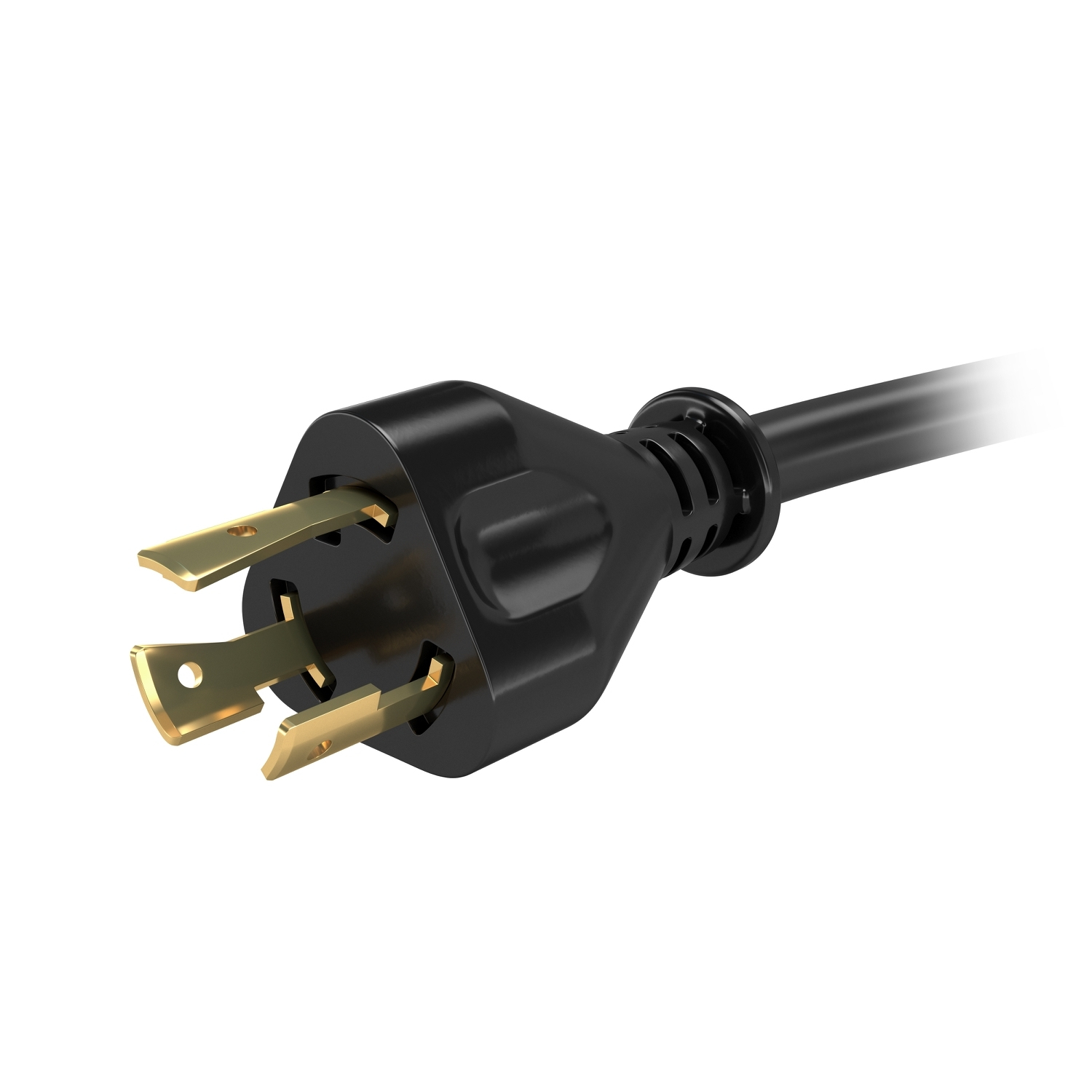

| Power plug | NEMA L6-20P |

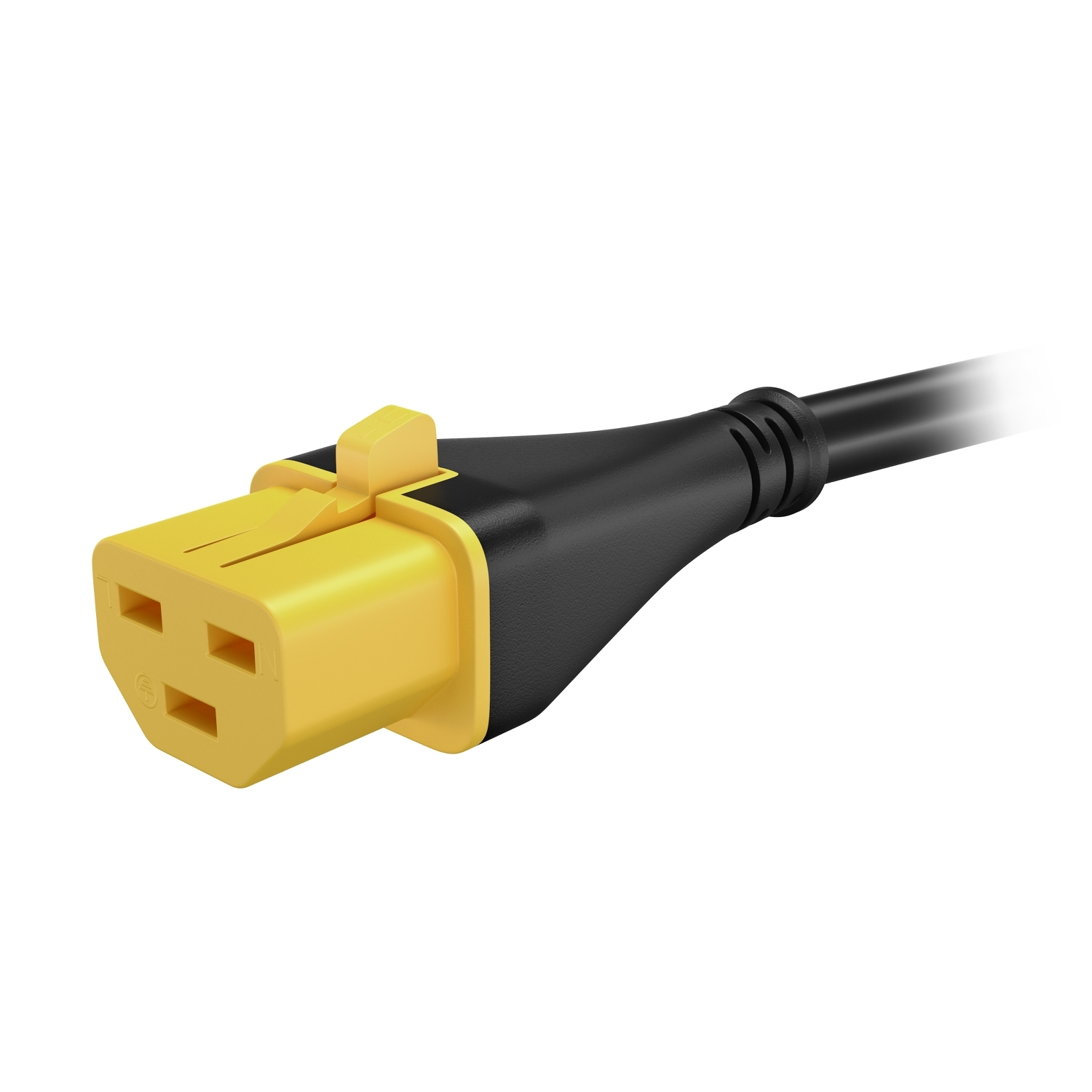

| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 200 V |
| Output voltage | 200 V |
| Load capacity | 3300 VA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC 15 A, PSE |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 60 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55 mm |
| Depth | 46 mm |
| Height | 1797 mm |
| Weight | 5.55 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7.86 kg |
| Package width | 165 mm |
| Package depth | 114 mm |
| Package height | 2002 mm |
Logistics data
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
