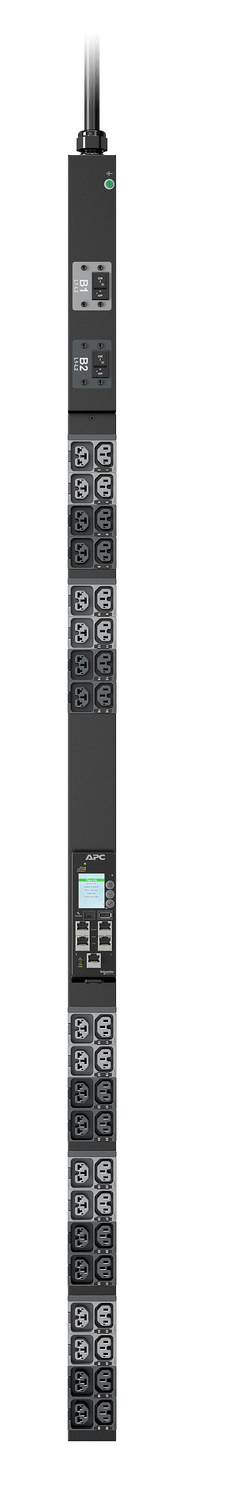

NetShelter power distribution unit (PDU) 40 AC outlet(s) 0U Black
Model NetShelterPart no. APDU11151MEEAN 731304752653
23 specifications
- TypeSingle-phase
- Weight6.2 kg
- ColourBlack
- PDU typesMetered
- AC outlets quantity40 AC outlet(s)
- Management platformNMC3
Overview
- Type
- Single-phase
- Weight
- 6.2 kg
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 40 AC outlet(s)
- Management platform
- NMC3
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- NetShelter
- Part numbers
- APDU11151ME, APDU11151SM
- EAN / UPC
- 731304752653, 731304752660
- Also known as
- APC NetShelter power distribution unit (PDU) 40 AC outlet(s) 0U Black
Specifications
23 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Type | Single-phase |
| Rack capacity | 0U |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 40 AC outlet(s) |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Ethernet LAN (RJ-45) ports | 5 |
Management features
| Specification | Value |
|---|---|
| Management platform | NMC3 |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 208 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 24 A |
| Nominal output voltage | 208 V |
| Load capacity | 4992 VA |
| Number of phases | 1 |
Certificates
| Specification | Value |
|---|---|
| Certification | UKCA, CE, EN 62368-1, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 75 mm |
| Height | 1490 mm |
| Weight | 6.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.2 kg |
| Package width | 116 mm |
| Package depth | 208 mm |
| Package height | 1720 mm |
