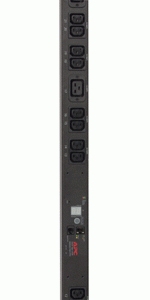

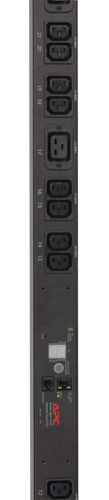

Metered Rack PDU
Model Metered Rack PDUPart no. AP7853EAN 7313042255844
22 specifications
- Weight4.32 kg
- ColourBlack
- Rack capacity0U
- Input connection typeIEC 309 16A 2P+E
- Cable length0.91 m
- Nominal input voltage230 V
Overview
- Weight
- 4.32 kg
- Colour
- Black
- Rack capacity
- 0U
- Input connection type
- IEC 309 16A 2P+E
- Cable length
- 0.91 m
- Nominal input voltage
- 230 V
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- Metered Rack PDU
- Part numbers
- AP7853, AP7851, AP7852
- EAN / UPC
- 7313042255844, 731304214304, 2000008881883, 5051749232165 +8 more
- Also known as
- APC Metered Rack PDU power distribution unit (PDU) 0U Black
Specifications
22 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Rack capacity | 0U |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | IEC 309 16A 2P+E |
| Output connections | (20) IEC 320 C13 (4) IEC 320 C19 |
Features
| Specification | Value |
|---|---|
| Cable length | 0.91 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
Certificates
| Specification | Value |
|---|---|
| Certification | CCC,CE,GOST,IRAM,VDE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55.6 mm |
| Depth | 43.9 mm |
| Height | 1619.3 mm |
| Weight | 4.32 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7.73 kg |
| Package width | 152 mm |
| Package depth | 127 mm |
| Package height | 2134 mm |
