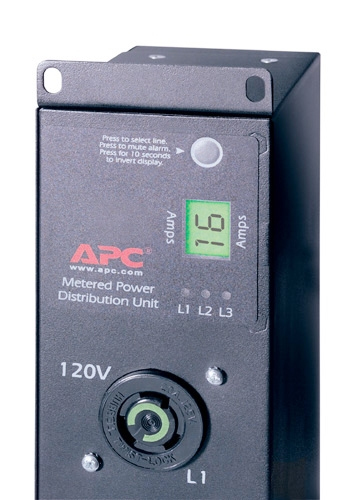

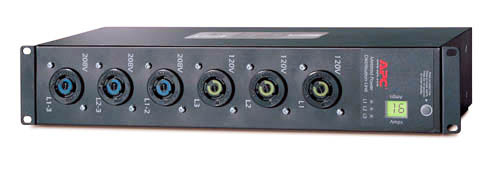

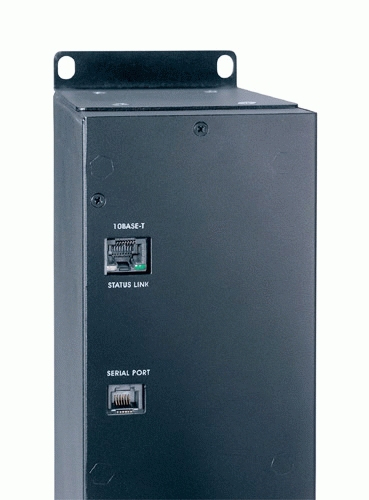

Metered Rack 5700VA PDU
Model Metered Rack 5700VA PDUPart no. AP7610
17 specifications
- Weight3.57 kg
- ColourBlack
- Input connection typeNEMA L21-20P
- Cable length0.91 m
- Nominal input voltage208 V
- Operating temperature (T-T)-5 - 45 °C
Overview
- Weight
- 3.57 kg
- Colour
- Black
- Input connection type
- NEMA L21-20P
- Cable length
- 0.91 m
- Nominal input voltage
- 208 V
- Operating temperature (T-T)
- -5 - 45 °C
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- Metered Rack 5700VA PDU
- Part number
- AP7610
- Also known as
- APC Metered Rack 5700VA PDU power distribution unit (PDU) Black
Specifications
17 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | NEMA L21-20P |
| Output connections | (3) NEMA L5-20R (3) NEMA L6-20R |
Features
| Specification | Value |
|---|---|
| Cable length | 0.91 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 208 V |
| Load capacity | 5700 VA |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 16 A |
Certificates
| Specification | Value |
|---|---|
| Certification | cUL, FCC Part 15 Class A, UL, VCCI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 447 mm |
| Depth | 152 mm |
| Height | 89 mm |
| Weight | 3.57 kg |
