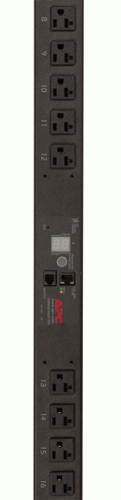

Metered Rack 1.92kVA PDU
Model Metered Rack 1.92kVA PDUPart no. AP7830EAN 398000136455
19 specifications
- Weight6.82 kg
- ColourBlack
- Input connection typeNEMA L5-20P
- Cable length3.05 m
- Nominal input voltage120 V
- Operating temperature (T-T)-5 - 45 °C
Overview
- Weight
- 6.82 kg
- Colour
- Black
- Input connection type
- NEMA L5-20P
- Cable length
- 3.05 m
- Nominal input voltage
- 120 V
- Operating temperature (T-T)
- -5 - 45 °C
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- Metered Rack 1.92kVA PDU
- Part number
- AP7830
- EAN / UPC
- 398000136455, 731304214311, 763615799850, 7313042143110
- Also known as
- APC Metered Rack 1.92kVA PDU power distribution unit (PDU) Black
Specifications
19 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Input connection type | NEMA L5-20P |
| Output connections | (24) NEMA 5-20R |
Features
| Specification | Value |
|---|---|
| Cable length | 3.05 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 120 V |
| AC input frequency | 50 - 60 Hz |
| Nominal output voltage | 120 V |
| Load capacity | 1920 VA |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 20 A |
Certificates
| Specification | Value |
|---|---|
| Certification | cUL, CSA C22.2 No. 60950-1-03, FCC Part 15 Class A, ICES-003, Industry Canada, UL 60950-1, UL |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 44 mm |
| Height | 1619 mm |
| Weight | 6.82 kg |
