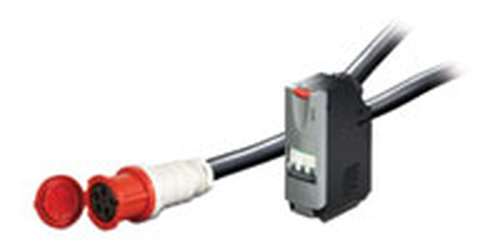

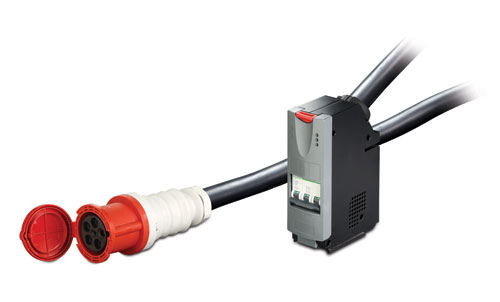

APC IT Power Distribution Module 3 Pole 5 Wire 63A IEC309 800cm

APC IT Power Distribution Module 3 Pole 5 Wire 63A IEC309 800cm

Model IT Power Distribution Module 3 Pole 5 Wire 63A IEC309 800cmPart no. PDM3563IEC-800EAN 731304283775

27 specifications

Weight25 kg
PDU typesMetered, Monitored
AC outlets quantity1 AC outlet(s)
LED indicatorsYes
Management platformWeb/SNMP
Nominal input voltage400 V

See all specifications

Overview

Weight: 25 kg
PDU types: Metered, Monitored
AC outlets quantity: 1 AC outlet(s)
LED indicators: Yes
Management platform: Web/SNMP
Nominal input voltage: 400 V

Brand: APC
Category: Power Distribution Units (PDUs)
Model: IT Power Distribution Module 3 Pole 5 Wire 63A IEC309 800cm
Part number: PDM3563IEC-800
EAN / UPC: 731304283775, 7313042837750
Also known as: APC IT Power Distribution Module 3 Pole 5 Wire 63A IEC309 800cm

Specifications

27 specifications in 9 groups

Design

Specification	Value
PDU types	Metered, Monitored

Ports & interfaces

Specification	Value
AC outlets quantity	1 AC outlet(s)
Output connections	1 x IEC 309

Features

Specification	Value
LED indicators	Yes
Cable length	8 m

Management features

Specification	Value
Management platform	Web/SNMP

Power

Specification	Value
Nominal input voltage	400 V
AC input frequency	50 Hz
Nominal output voltage	230-400 V
Maximum input current per phase	63 A
Maximum total current draw per phase	63 A

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	CE,VDE

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 30 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4500 m

Weight & dimensions

Specification	Value
Width	267 mm
Depth	305 mm
Height	152 mm
Weight	25 kg

Packaging data

Specification	Value
Package weight	26.8 kg
Package width	508 mm
Package depth	508 mm
Package height	229 mm
