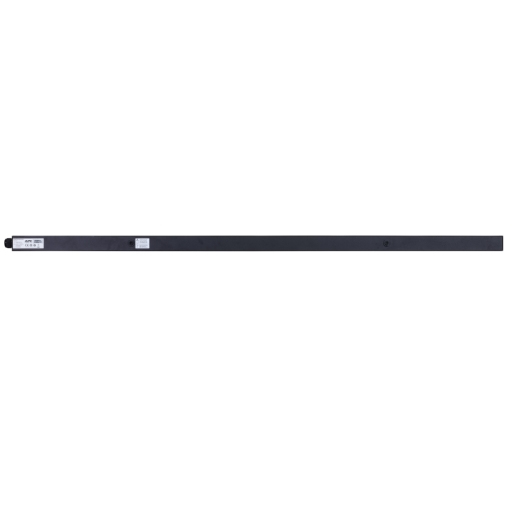

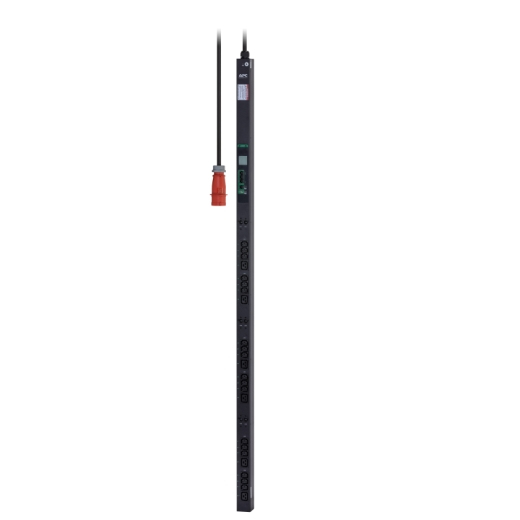

EPDU1232S power distribution unit (PDU) 24 AC outlet(s) 0U Black
Model EPDU1232SEAN 731304428039
29 specifications
- Power22000 W
- Weight8.17 kg
- ColourBlack
- PDU typesSwitched
- AC outlets quantity24 AC outlet(s)
- Cable length2 m
Overview
- Power
- 22000 W
- Weight
- 8.17 kg
- Colour
- Black
- PDU types
- Switched
- AC outlets quantity
- 24 AC outlet(s)
- Cable length
- 2 m
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- EPDU1232S
- Part number
- EPDU1232S
- EAN / UPC
- 731304428039
- Also known as
- APC EPDU1232S power distribution unit (PDU) 24 AC outlet(s) 0U Black
Specifications
29 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Switched |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 2 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 400 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Output voltage | 230 V |
| Maximum power | 22000 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Certification | EAC, RCM, TÜV |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55 mm |
| Depth | 62 mm |
| Height | 1794 mm |
| Weight | 8.17 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 9.45 kg |
| Package width | 160 mm |
| Package depth | 110 mm |
| Package height | 1950 mm |
