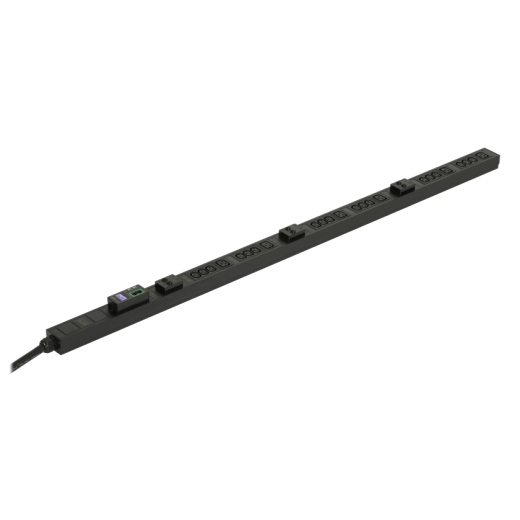

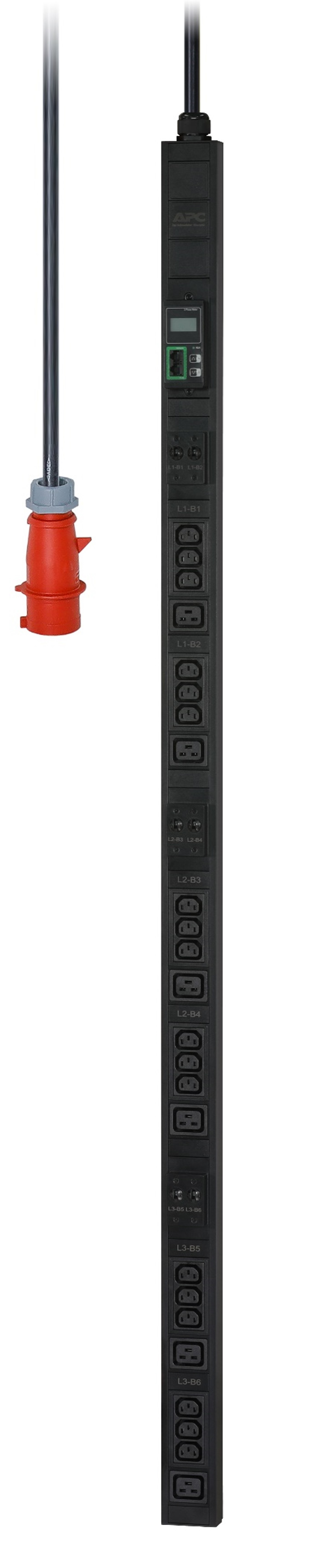

Easy Rack PDU, Metered, 0U, 3 Phase, 22kW
230V, 32A, 18 x C13 and 6 x C19 outlets, IEC60309 3P+N+PE inlet
Model EPDU1232MEAN 731304405115
33 specifications
- Power22000 W
- TypeThree-phase
- Weight4.64 kg
- ColourBlack
- PDU typesMetered
- AC outlets quantity32 AC outlet(s)
Overview
- Power
- 22000 W
- Type
- Three-phase
- Weight
- 4.64 kg
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 32 AC outlet(s)
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- EPDU1232M
- Part number
- EPDU1232M
- EAN / UPC
- 731304405115
- Also known as
- APC Easy Rack PDU, Metered, 0U, 3 Phase, 22kW, 230V, 32A, 18 x C13 and 6 x C19 outlets, IEC60309 3P+N+PE inlet
Specifications
33 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | Aluminium |
| Product colour | Black |
| Display | LCD |
| On/off switch | No |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 32 AC outlet(s) |
| Power plug | C13 coupler |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Daisy chain | No |
| Reset button | Yes |
| LED indicators | Yes |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 400 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Load capacity | 22080 VA |
| Maximum power | 22000 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, EAC, RCM, TUV |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 62 mm |
| Depth | 44 mm |
| Height | 1506 mm |
| Weight | 4.64 kg |
Logistics data
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 37789.25 |
