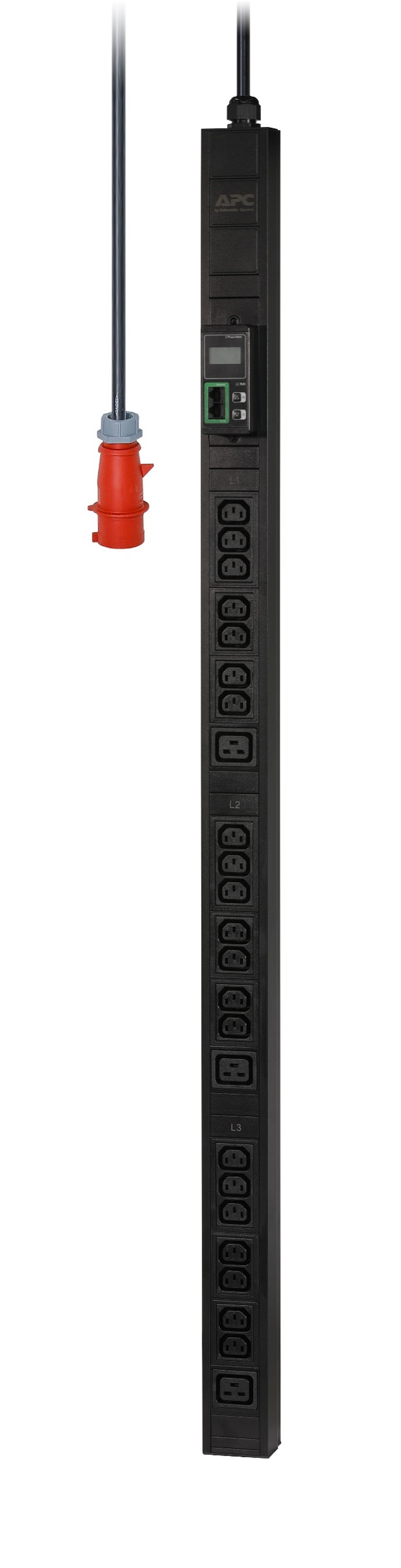

Easy Rack PDU, Metered, 0U, 3 Phase, 11kW
230V, 16A, 21 x C13 and 3 x C19 outlets, IEC60309 3P+N+PE inlet
Model EPDU1216MEAN 731304405108
25 specifications
- Power11000 W
- TypeThree-phase
- Weight3.01 kg
- ColourBlack
- PDU typesMetered
- AC outlets quantity42 AC outlet(s)
Overview
- Power
- 11000 W
- Type
- Three-phase
- Weight
- 3.01 kg
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 42 AC outlet(s)
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- EPDU1216M
- Part number
- EPDU1216M
- EAN / UPC
- 731304405108
- Also known as
- APC Easy Rack PDU, Metered, 0U, 3 Phase, 11kW, 230V, 16A, 21 x C13 and 3 x C19 outlets, IEC60309 3P+N+PE inlet
Specifications
25 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | Aluminium |
| Product colour | Black |
| Display | LCD |
| On/off switch | No |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 42 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Daisy chain | No |
| Reset button | Yes |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 400 V |
| Maximum current | 16 A |
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Load capacity | 11040 VA |
| Maximum power | 11000 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 62 mm |
| Depth | 44 mm |
| Height | 1506 mm |
| Weight | 3.01 kg |
Logistics data
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 21797.27 |
