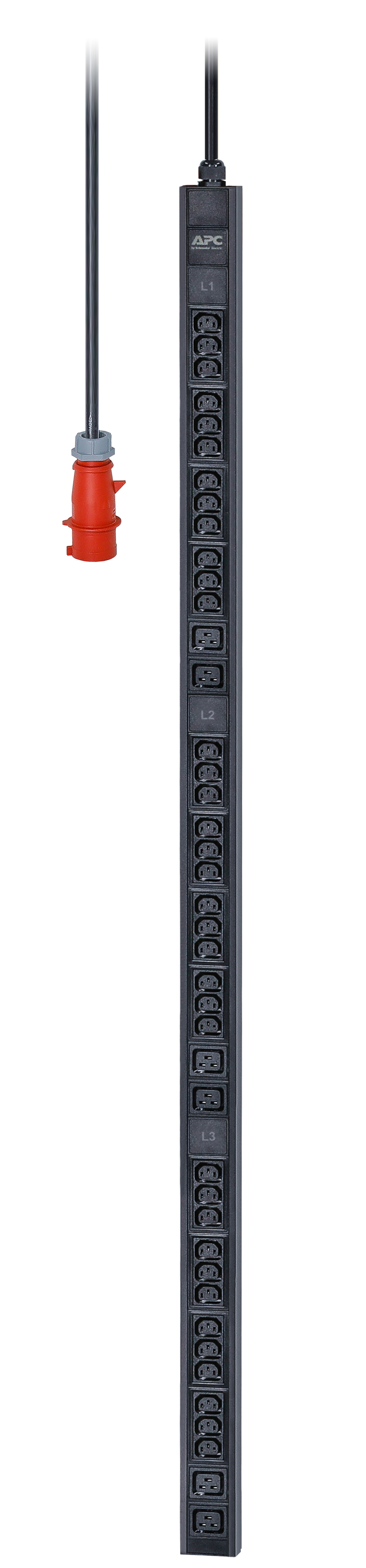

Easy Rack PDU, Basic, 0U, 3 Phase, 11kW
230V, 16A, 36 x C13 and 6 x C19 outlets, IEC60309 3P+N+PE inlet
Model EPDU1216BEAN 731304405054
35 specifications
- Power11000 W
- TypeThree-phase
- Weight3.08 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity42 AC outlet(s)
Overview
- Power
- 11000 W
- Type
- Three-phase
- Weight
- 3.08 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 42 AC outlet(s)
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- EPDU1216B
- Part number
- EPDU1216B
- EAN / UPC
- 731304405054, 7612205348271
- Also known as
- APC Easy Rack PDU, Basic, 0U, 3 Phase, 11kW, 230V, 16A, 36 x C13 and 6 x C19 outlets, IEC60309 3P+N+PE inlet
Specifications
35 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | Aluminium |
| Product colour | Black |
| On/off switch | No |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 42 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 2.5 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 400 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 230 V |
| Load capacity | 11000 VA |
| Maximum input current per phase | 16 A |
| Maximum power | 11000 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, TUV |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 62 mm |
| Depth | 44 mm |
| Height | 1506 mm |
| Weight | 3.08 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 4.28 kg |
| Package width | 160 mm |
| Package depth | 110 mm |
| Package height | 1660 mm |
Logistics data
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 78.59 |
