Easy Rack PDU, Metered, 1U, 1 Phase, 3.7kW
230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet
Model EPDU1016MEAN 731304405078
41 specifications
- Power3680 W
- TypeSingle-phase
- Weight700 g
- ColourBlack
- PDU typesMetered
- AC outlets quantity8 AC outlet(s)
Overview
- Power
- 3680 W
- Type
- Single-phase
- Weight
- 700 g
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 8 AC outlet(s)
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- EPDU1016M
- Part number
- EPDU1016M
- EAN / UPC
- 731304405078
- Also known as
- APC Easy Rack PDU, Metered, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet
Specifications
41 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Housing material | Aluminium |
| Product colour | Black |

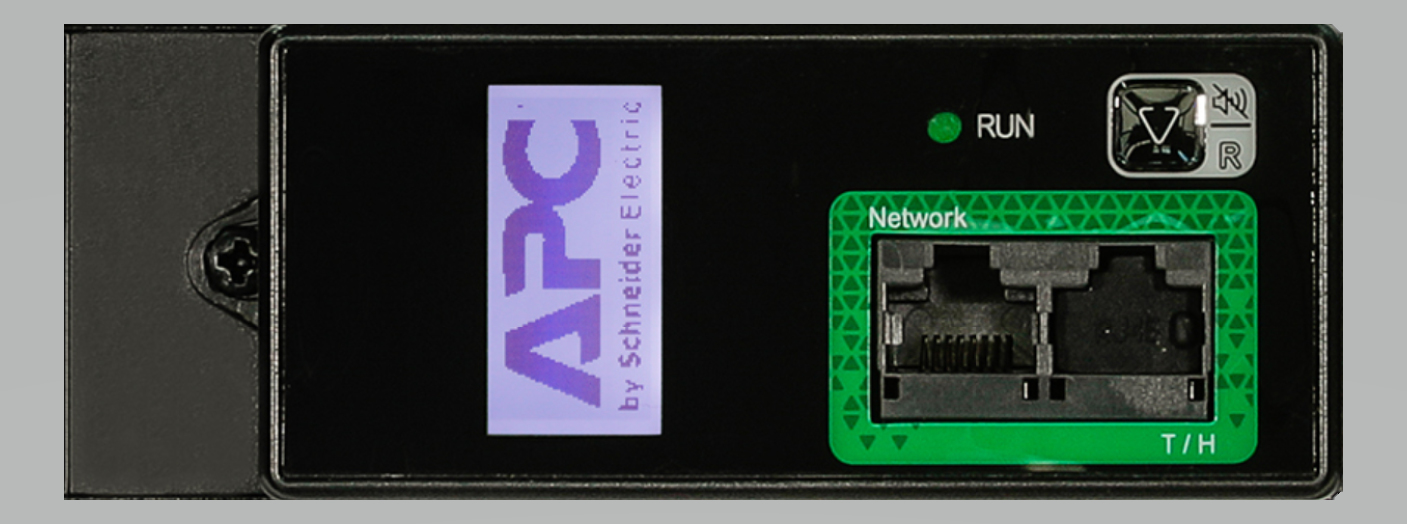

| Display | LCD |
| On/off switch | No |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
Features
| Specification | Value |
|---|---|
| Daisy chain | No |
| LED indicators | Yes |
| Cable length | 2.5 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200/208/230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 208/230 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum power | 3680 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, TUV |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Depth | 44 mm |
| Height | 44 mm |
| Weight | 700 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.4 kg |
| Package width | 560 mm |
| Package depth | 150 mm |
| Package height | 80 mm |
Logistics data
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 5177.36 |
