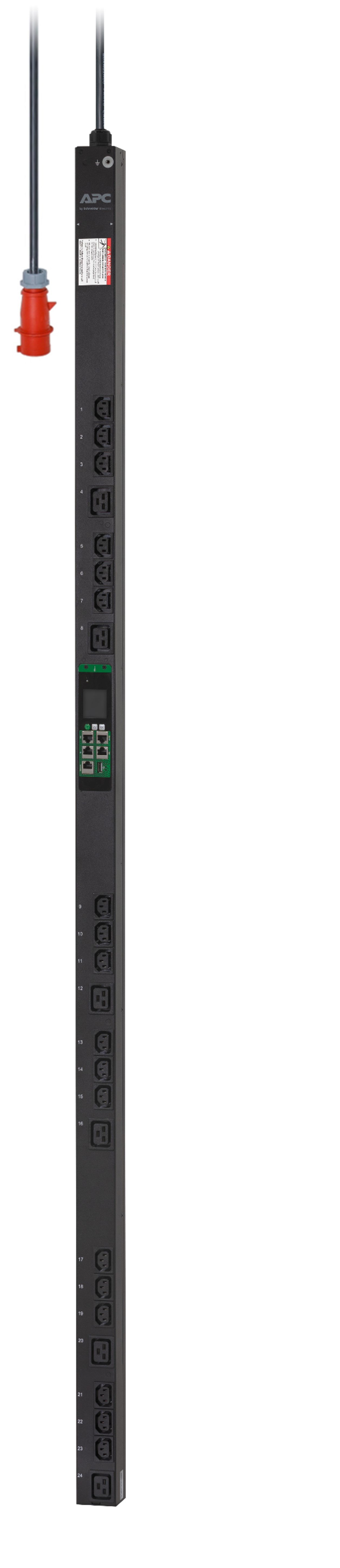

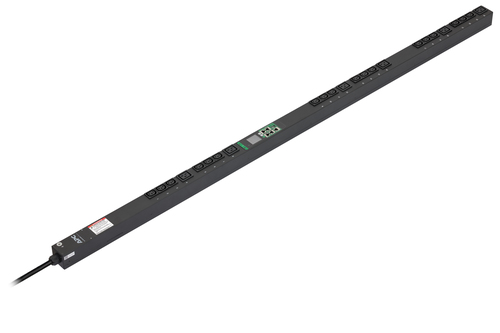

EasyPDU power distribution unit (PDU) 24 AC outlet(s) 0U Black
Model EasyPDUPart no. EPDU1132MBOEAN 731304447993
34 specifications
- Power11000 W
- TypeThree-phase
- Weight6.82 kg
- ColourBlack
- PDU typesMetered, Metered-by-outlet
- AC outlets quantity24 AC outlet(s)
Overview
- Power
- 11000 W
- Type
- Three-phase
- Weight
- 6.82 kg
- Colour
- Black
- PDU types
- Metered, Metered-by-outlet
- AC outlets quantity
- 24 AC outlet(s)
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- EasyPDU
- Part numbers
- EPDU1132MBO, EPDU1216MBO, EPDU1116MBO, EPDU1216SMBO, EPDU1232MBO, EPDU1232SMBO +1 more
- EAN / UPC
- 731304447993, 731304448006, 731304447986, 731304448044 +3 more
- Also known as
- APC EasyPDU power distribution unit (PDU) 24 AC outlet(s) 0U Black
Specifications
34 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered, Metered-by-outlet |
| Type | Three-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
| LED indicators | Yes |
| Cable length | 3 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 400 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Load capacity | 11000 VA |
| Maximum power | 11000 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55 mm |
| Depth | 56 mm |
| Height | 1800 mm |
| Weight | 6.82 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 7.99 kg |
| Package width | 195 mm |
| Package depth | 130 mm |
| Package height | 2030 mm |
