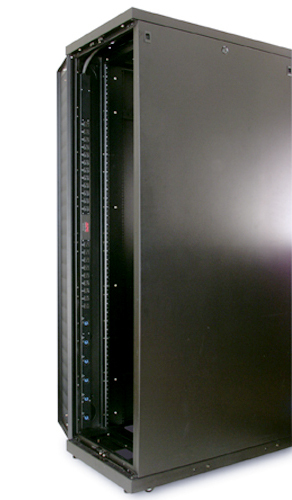

Basic Rack 5.7k VA PDU
Model Basic Rack 5.7k VA PDUPart no. AP7564EAN 731304207948
24 specifications
- Weight5.45 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity42 AC outlet(s)
- Cable length0.91 m
- Nominal input voltage208 V
Overview
- Weight
- 5.45 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 42 AC outlet(s)
- Cable length
- 0.91 m
- Nominal input voltage
- 208 V
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- Basic Rack 5.7k VA PDU
- Part number
- AP7564
- EAN / UPC
- 731304207948, 7313042079488
- Also known as
- APC Basic Rack 5.7k VA PDU power distribution unit (PDU) 42 AC outlet(s) 0U Black
Specifications
24 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Rack capacity | 0U |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 42 AC outlet(s) |
| Power plug | NEMA L21-20P |
| AC outlet types | C13 coupler, C19 coupler |
| Output connections | -(36) IEC 320 C13. -(6) IEC 320 C19. |
Features
| Specification | Value |
|---|---|
| Cable length | 0.91 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 208 V |
| AC input frequency | 50 - 60 Hz |
| Nominal output voltage | 208 V |
| Load capacity | 5700 VA |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 20 A |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | cUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 44 mm |
| Height | 1778 mm |
| Weight | 5.45 kg |
