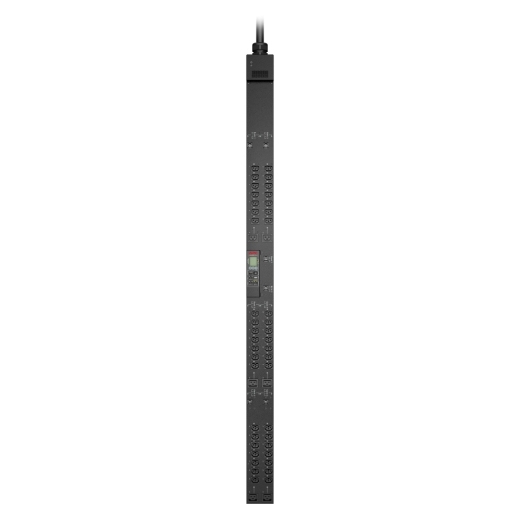

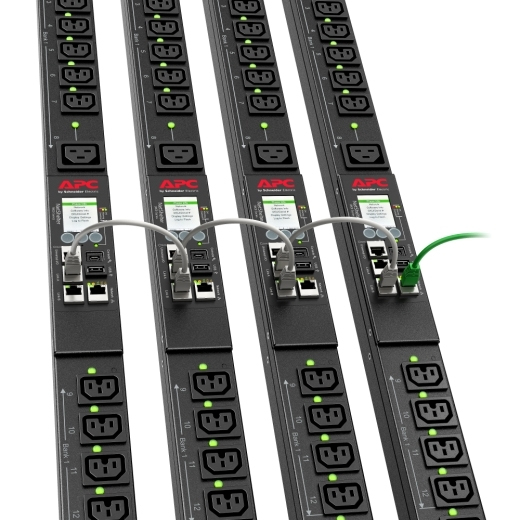

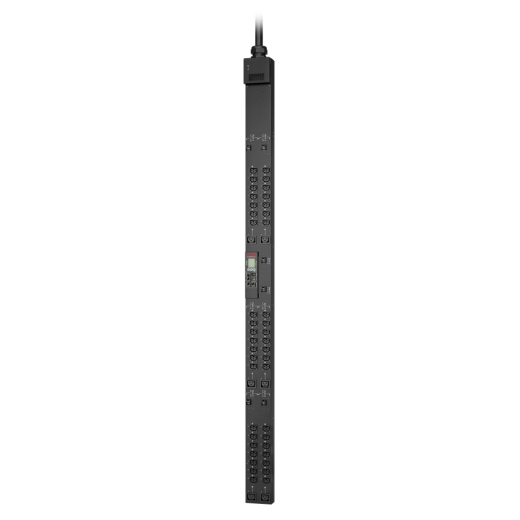

APDU9967 power distribution unit (PDU) 0U Black
Model APDU9967EAN 731304356349
35 specifications
- Power17300 W
- TypeSingle-phase
- Weight14.5 kg
- ColourBlack
- PDU typesSwitched
- Power plugIEC 60309
Overview
- Power
- 17300 W
- Type
- Single-phase
- Weight
- 14.5 kg
- Colour
- Black
- PDU types
- Switched
- Power plug
- IEC 60309
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- APDU9967
- Part number
- APDU9967
- EAN / UPC
- 731304356349
- Also known as
- APC APDU9967 power distribution unit (PDU) 0U Black
Specifications
35 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Switched |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|

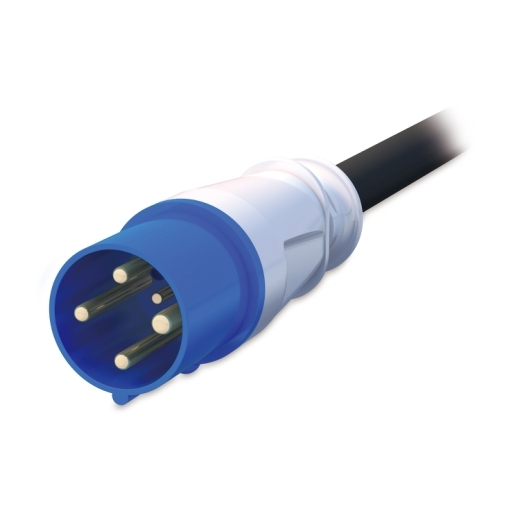

| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 1.8 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 208 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 48 A |
| Block 1 output current | 60 A |
| Block 2 output current | 60 A |
| Nominal output voltage | 208 V |
| Output voltage | 208 V |
| Load capacity | 17300 VA |
| Maximum input current per phase | 60 A |
| Maximum total current draw per phase | 48 A |
| Maximum power | 17300 W |
| Power protection features | Overload |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 60 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Operating temperature (T-T) | 23 - 140 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 111 mm |
| Depth | 76 mm |
| Height | 1833 mm |
| Weight | 14.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 20 kg |
| Package width | 221 mm |
| Package depth | 112 mm |
| Package height | 2149 mm |
