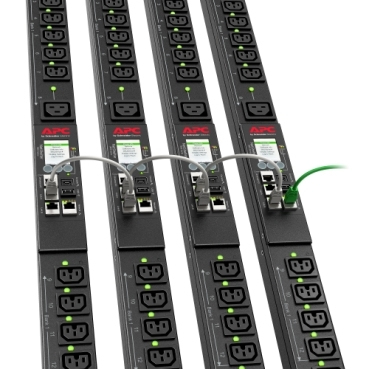

APDU9966 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Model APDU9966EAN 731304356332
26 specifications
- TypeSingle-phase
- Weight14 kg
- ColourBlack
- PDU typesSwitched
- AC outlets quantity24 AC outlet(s)
- Nominal input voltage200, 208, 230, 220-240 V
Overview
- Type
- Single-phase
- Weight
- 14 kg
- Colour
- Black
- PDU types
- Switched
- AC outlets quantity
- 24 AC outlet(s)
- Nominal input voltage
- 200, 208, 230, 220-240 V
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- APDU9966
- Part number
- APDU9966
- EAN / UPC
- 731304356332
- Also known as
- APC APDU9966 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Specifications
26 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Switched |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C19 coupler |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200, 208, 230, 220-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 48 A |
| Load capacity | 17300 VA |
Certificates
| Specification | Value |
|---|---|
| Certification | EAC, EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, RCM, VDE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 111 mm |
| Depth | 76 mm |
| Height | 1833 mm |
| Weight | 14 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 112 mm |
| Package depth | 221 mm |
| Package height | 2149 mm |
