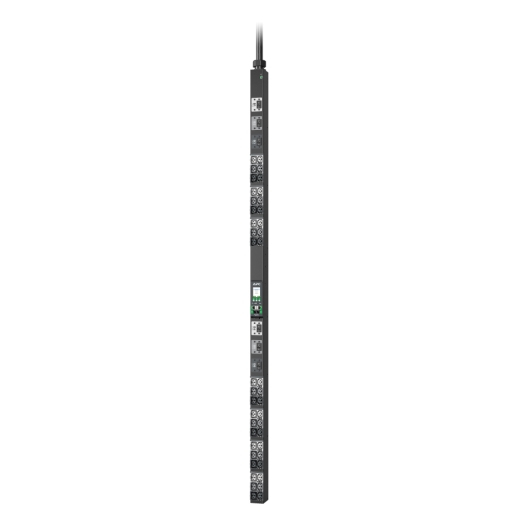

APDU10451ME power distribution unit (PDU) 42 AC outlet(s) Black
Model APDU10451MEEAN 731304439820
33 specifications
- Power40 W
- TypeSingle-phase
- Weight10.6 kg
- ColourBlack
- PDU typesMetered
- AC outlets quantity42 AC outlet(s)
Overview
- Power
- 40 W
- Type
- Single-phase
- Weight
- 10.6 kg
- Colour
- Black
- PDU types
- Metered
- AC outlets quantity
- 42 AC outlet(s)
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- APDU10451ME
- Part number
- APDU10451ME
- EAN / UPC
- 731304439820
- Also known as
- APC APDU10451ME power distribution unit (PDU) 42 AC outlet(s) Black
Specifications
33 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered |
| Type | Single-phase |
| Product colour | Black |
| Display | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 42 AC outlet(s) |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Ethernet LAN (RJ-45) ports | 2 |
Features
| Specification | Value |
|---|---|
| Cable length | 1.8 m |
Management features
| Specification | Value |
|---|---|
| Management platform | NMC |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 208 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 50 A |
| Nominal output voltage | 208 V |
| Load capacity | 14400 VA |
| Number of phases | 3 |
| Maximum power | 40 W |
| Power protection features | Overload |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 60 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Operating temperature (T-T) | 23 - 140 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 75 mm |
| Height | 1780 mm |
| Weight | 10.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 13.6 kg |
| Package width | 262 mm |
| Package depth | 132 mm |
| Package height | 1980 mm |
