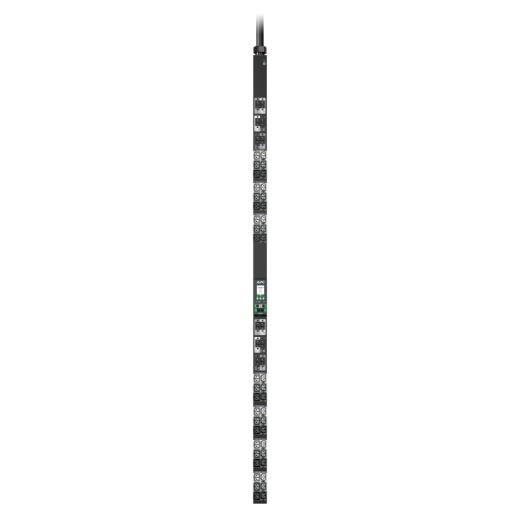

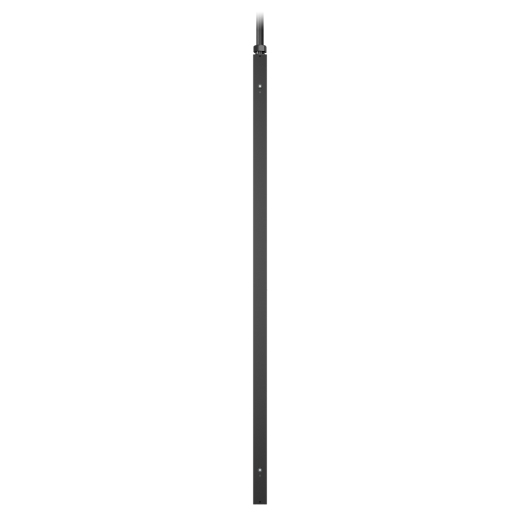

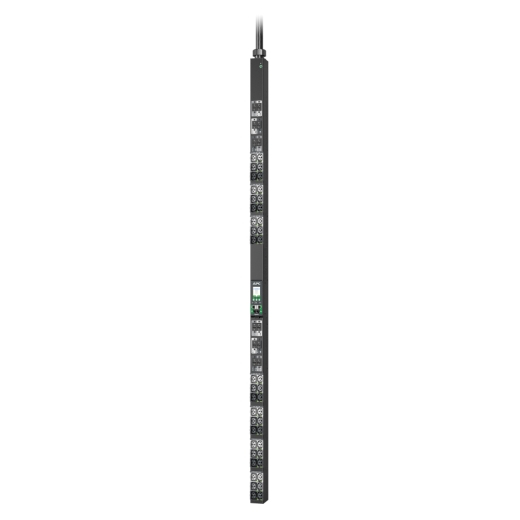

NetShelter Rack PDU Advanced, Switched, 3Phase, 43.5kW
400V 63A or 34.6kW 415V 60A, 42 Outlets, IEC309
Model APDU10450SWEAN 731304439110
35 specifications
- TypeSingle-phase
- Weight12.4 kg
- ColourBlack
- PDU typesSwitched
- AC outlets quantity48 AC outlet(s)
- Daisy chainYes
Overview
- Type
- Single-phase
- Weight
- 12.4 kg
- Colour
- Black
- PDU types
- Switched
- AC outlets quantity
- 48 AC outlet(s)
- Daisy chain
- Yes
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- APDU10450SW
- Part number
- APDU10450SW
- EAN / UPC
- 731304439110
- Also known as
- APC NetShelter Rack PDU Advanced, Switched, 3Phase, 43.5kW 400V 63A or 34.6kW 415V 60A, 42 Outlets, IEC309
Specifications
35 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Switched |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LCD |
| On/off switch | No |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 48 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 60 A |
| Nominal output voltage | 240 V |
| Output voltage | 240 V |
| Load capacity | 34600 VA |
| Maximum input current per phase | 60 A |
| Maximum total current draw per phase | 48 A |
Certificates
| Specification | Value |
|---|---|
| Certification | CSA C22.2 No 62368-1, FCC part 15 subpart B, UL 62368-1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 60 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 75 mm |
| Height | 1826 mm |
| Weight | 12.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 15.4 kg |
| Package width | 262 mm |
| Package depth | 132 mm |
| Package height | 1980 mm |
Logistics data
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 5004.04 |
