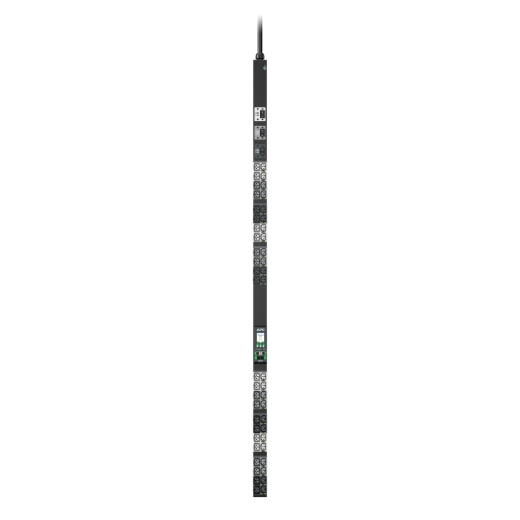

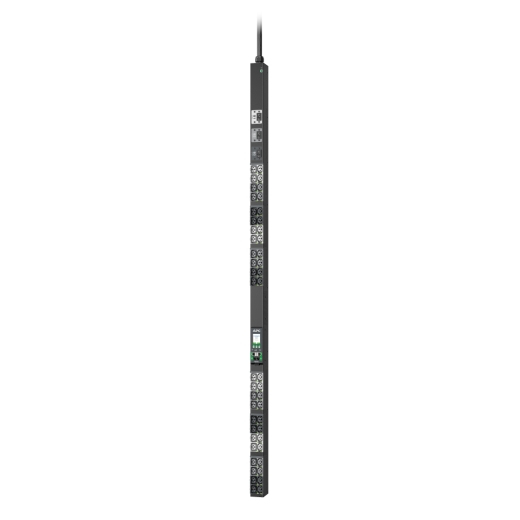

APDU10351SM power distribution unit (PDU) 48 AC outlet(s) 0U Black
Model APDU10351SMEAN 731304439813
33 specifications
- TypeSingle-phase
- Weight9.4 kg
- ColourBlack
- PDU typesSwitched
- AC outlets quantity48 AC outlet(s)
- Daisy chainYes
Overview
- Type
- Single-phase
- Weight
- 9.4 kg
- Colour
- Black
- PDU types
- Switched
- AC outlets quantity
- 48 AC outlet(s)
- Daisy chain
- Yes
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- APDU10351SM
- Part number
- APDU10351SM
- EAN / UPC
- 731304439813
- Also known as
- APC APDU10351SM power distribution unit (PDU) 48 AC outlet(s) 0U Black
Specifications
33 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Switched |
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Display | LCD |
| On/off switch | No |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 48 AC outlet(s) |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
Features
| Specification | Value |
|---|---|
| Daisy chain | Yes |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 208 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 24 A |
| Nominal output voltage | 208 V |
| Output voltage | 208 V |
| Load capacity | 8600 VA |
| Maximum input current per phase | 30 A |
| Maximum total current draw per phase | 24 A |
Certificates
| Specification | Value |
|---|---|
| Certification | CSA C22.2 No 62368-1, FCC part 15 subpart B, UL 62368-1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 23 - 140 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 75 mm |
| Height | 1780 mm |
| Weight | 9.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 12.4 kg |
| Package width | 208 mm |
| Package depth | 116 mm |
| Package height | 1980 mm |
