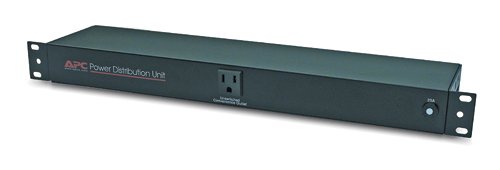

APC AP9550 power distribution unit (PDU) Black

APC AP9550 power distribution unit (PDU) Black

Model AP9550

23 specifications

Weight2.14 kg
ColourBlack
Input connection typeNEMA L5-20P
Cable length3.66 m
Nominal input voltage120 V
Operating temperature (T-T)-25 - 65 °C

See all specifications

Overview

Weight: 2.14 kg
Colour: Black
Input connection type: NEMA L5-20P
Cable length: 3.66 m
Nominal input voltage: 120 V
Operating temperature (T-T): -25 - 65 °C

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP9550
Part number: AP9550
Also known as: APC AP9550 power distribution unit (PDU) Black

Specifications

23 specifications in 8 groups

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
Input connection type	NEMA L5-20P

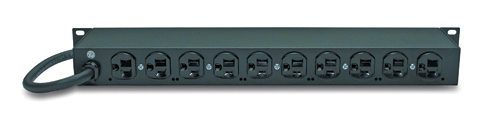

Output connections	(11) NEMA 5-15R

Features

Specification	Value
Cable length	3.66 m

Power

Specification	Value
Nominal input voltage	120 V
AC input frequency	50 - 60 Hz
Nominal output voltage	120 V
Load capacity	2400 VA
Maximum input current per phase	20 A
Maximum total current draw per phase	20 A

Certificates

Specification	Value
Certification	cUL, CSA, UL 1363, UL

Operational conditions

Specification	Value
Operating temperature (T-T)	-25 - 65 °C
Storage temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%

Weight & dimensions

Specification	Value
Width	432 mm
Depth	102 mm
Height	44 mm
Weight	2.14 kg

Packaging data

Specification	Value
Package weight	2.68 kg
Package width	483 mm
Package depth	343 mm
Package height	70 mm
