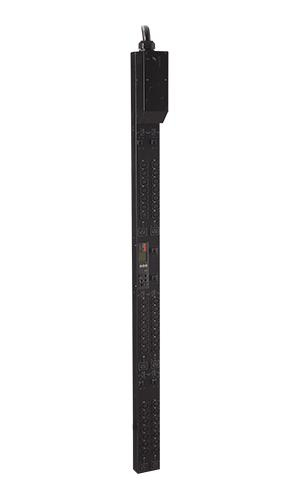

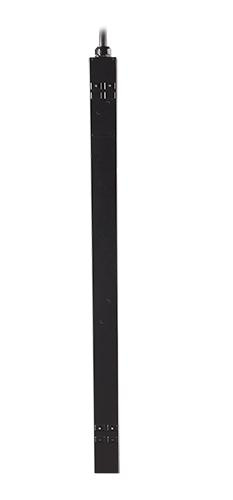

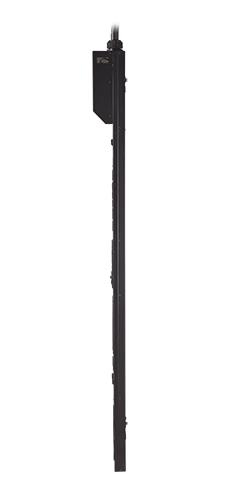

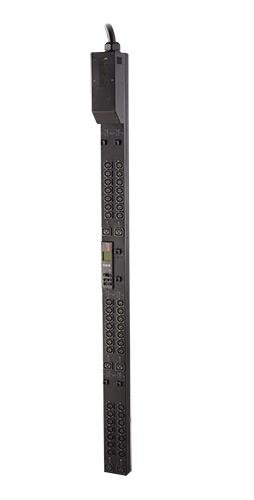

APC AP8967 power distribution unit (PDU) 48 AC outlet(s) Black

APC AP8967 power distribution unit (PDU) 48 AC outlet(s) Black

Model AP8967EAN 731304330905

32 specifications

Weight15.9 kg
ColourBlack
PDU typesSwitched
AC outlets quantity48 AC outlet(s)
LED indicatorsYes
MonitoringCurrent

See all specifications

Overview

Weight: 15.9 kg
Colour: Black
PDU types: Switched
AC outlets quantity: 48 AC outlet(s)
LED indicators: Yes
Monitoring: Current

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP8967
Part number: AP8967
EAN / UPC: 731304330905
Also known as: APC AP8967 power distribution unit (PDU) 48 AC outlet(s) Black

Specifications

32 specifications in 9 groups

Design

Specification	Value
PDU types	Switched
Product colour	Black

Ports & interfaces

Specification	Value
AC outlets quantity	48 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Input connection type	IEC 309 60A 3P+PE

Features

Specification	Value
LED indicators	Yes
Cable length	1.83 m

Management features

Specification	Value
Monitoring	Current

Power

Specification	Value
Nominal input voltage	208 V
AC input frequency	50 - 60 Hz
Maximum current	60 A
Nominal output voltage	208 V
Load capacity	17300 VA
Maximum input current per phase	60 A
Maximum total current draw per phase	48 A
Power protection features	Overload

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, UL, VCCI A

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Weight & dimensions

Specification	Value
Width	56 mm
Depth	51 mm
Height	1829 mm
Weight	15.9 kg

Packaging data

Specification	Value
Package weight	20 kg
Package width	221 mm
Package depth	112 mm
Package height	2149 mm
