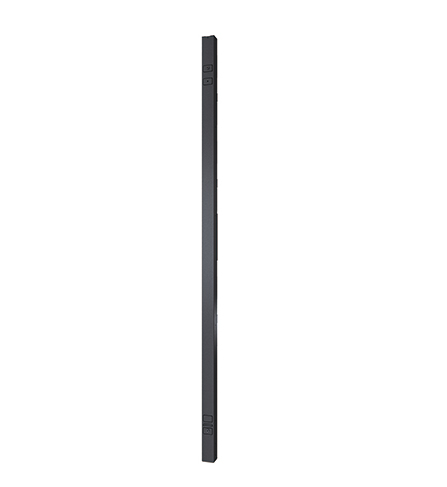

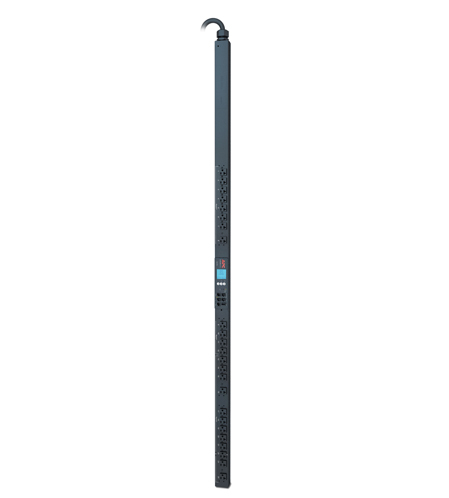

APC AP8962 power distribution unit (PDU) 24 AC outlet(s) Black

APC AP8962 power distribution unit (PDU) 24 AC outlet(s) Black

Model AP8962EAN 731304307549

31 specifications
  • Weight6.97 kg
  • ColourBlack
  • PDU typesSwitched
  • AC outlets quantity24 AC outlet(s)
  • LED indicatorsYes
  • Nominal input voltage208 V
See all specifications

Overview

Weight
6.97 kg
Colour
Black
PDU types
Switched
AC outlets quantity
24 AC outlet(s)
LED indicators
Yes
Nominal input voltage
208 V
Brand
APC
Model
AP8962
Part number
AP8962
EAN / UPC
731304307549, 7313043075496
Also known as
APC AP8962 power distribution unit (PDU) 24 AC outlet(s) Black

Specifications

31 specifications in 8 groups

Design

PDU typesSwitched
MountingHorizontal/Vertical
Product colourBlack

Ports & interfaces

AC outlets quantity24 AC outlet(s)
Power plugNEMA L21-20P
AC outlet typesNEMA 5–20R

Features

LED indicatorsYes
Cable length1.83 m

Power

Nominal input voltage208 V
AC input frequency50 - 60 Hz
Nominal output voltage120 V
Load capacity5760 VA
Maximum input current per phase20 A
Maximum total current draw per phase16 A

Certificates

Compliance certificatesRoHS
CertificationcUL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, UL Listed

Operational conditions

Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Operating temperature (T-T)23 - 113 °F

Weight & dimensions

Width55 mm
Depth44 mm
Height1791 mm
Weight6.97 kg

Packaging data

Package weight9.5 kg
Package width160 mm
Package depth108 mm
Package height2006 mm
