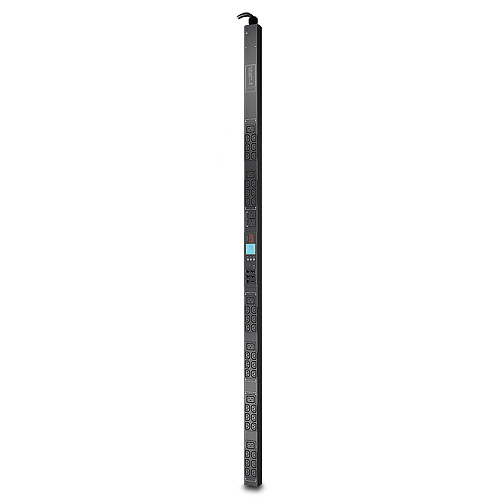

APC AP8865 power distribution unit (PDU) 44 AC outlet(s) 0U Black

APC AP8865 power distribution unit (PDU) 44 AC outlet(s) 0U Black

Model AP8865Part no. AP8865X630EAN 731304290865

35 specifications

Weight7.56 kg
ColourBlack
PDU typesMetered, Monitored
AC outlets quantity44 AC outlet(s)
Cable length1.82 m
MonitoringPower, Voltage, Energy

See all specifications

Overview

Weight: 7.56 kg
Colour: Black
PDU types: Metered, Monitored
AC outlets quantity: 44 AC outlet(s)
Cable length: 1.82 m
Monitoring: Power, Voltage, Energy

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP8865
Part numbers: AP8865X630, AP8865
EAN / UPC: 731304290865, 643749352605, 7313042770644, 7313042908658
Also known as: APC AP8865 power distribution unit (PDU) 44 AC outlet(s) 0U Black

Specifications

35 specifications in 11 groups

Design

Specification	Value
PDU types	Metered, Monitored
Rack capacity	0U
Mounting	Vertical
Product colour	Black
Display	LCD

Ports & interfaces

Specification	Value
AC outlets quantity	44 AC outlet(s)

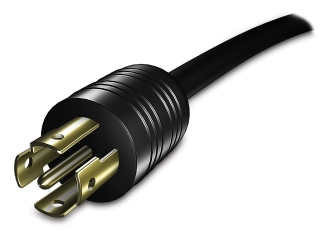

Power plug	NEMA L21-30P
AC outlet types	NEMA 5-20R, C13 coupler, C19 coupler
Output connections	36x IEC 320 C13 6x IEC 320 C19 2x NEMA 5-20R

Features

Specification	Value
Cable length	1.82 m
Security algorithms	SNMP

Management features

Specification	Value
Monitoring	Power, Voltage, Energy

Power

Specification	Value
Nominal input voltage	208 V
AC input frequency	50 - 60 Hz
Maximum current	30 A
Nominal output voltage	208 V
Load capacity	8600 VA
Maximum input current per phase	30 A
Maximum total current draw per phase	30 A

Certificates

Specification	Value
Certification	CSA C22.2 No. 60950,UL 60950-1

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 60 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Non-operating altitude	0 - 15240 m

Weight & dimensions

Specification	Value
Width	56 mm
Depth	46 mm
Height	1791 mm
Weight	7.56 kg

Packaging content

Specification	Value
Manual	Yes

Packaging data

Specification	Value
Package weight	9.2 kg
Package width	107 mm
Package depth	162 mm
Package height	200 mm

Logistics data

Specification	Value
Total carbon footprint (kg of CO2e)	6416
