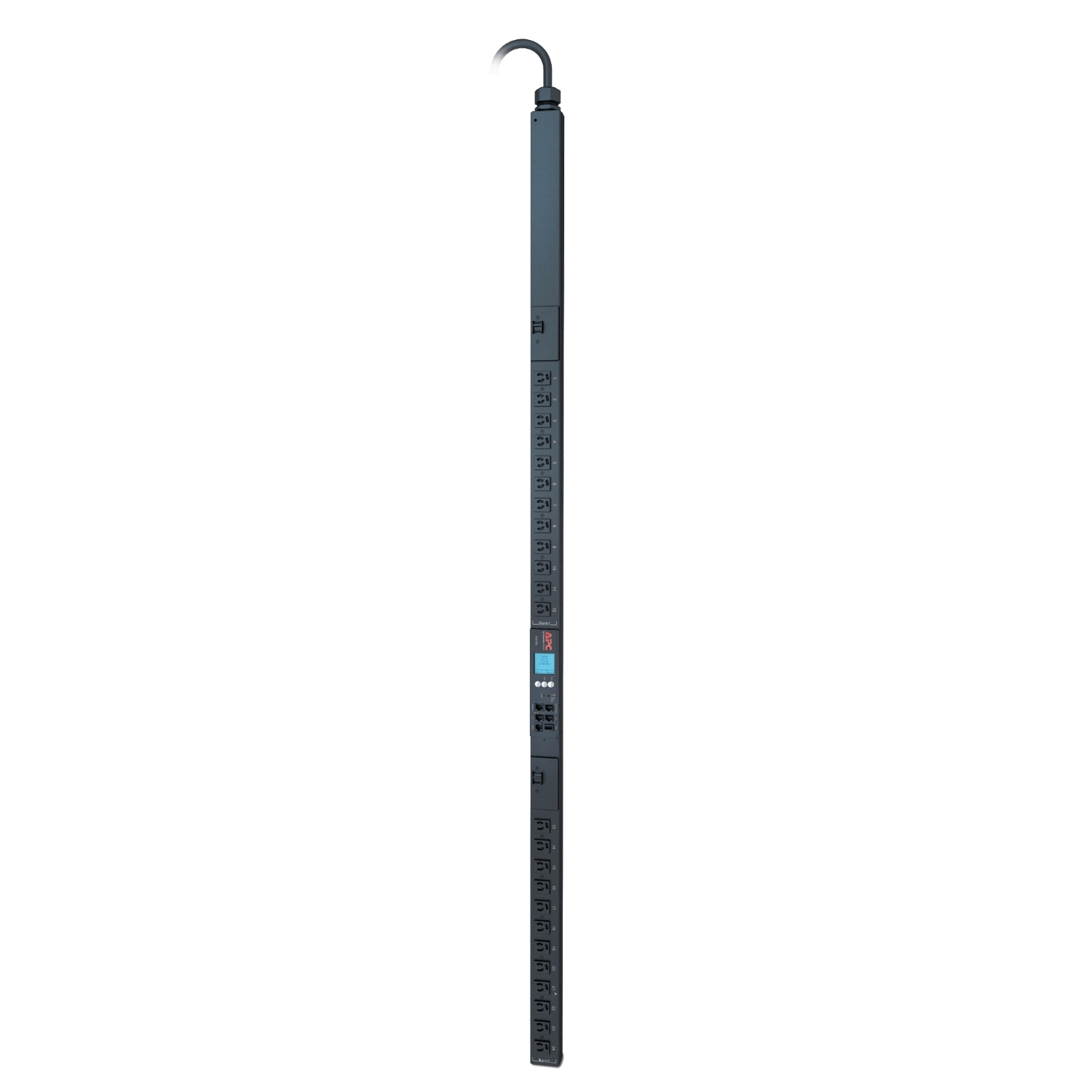

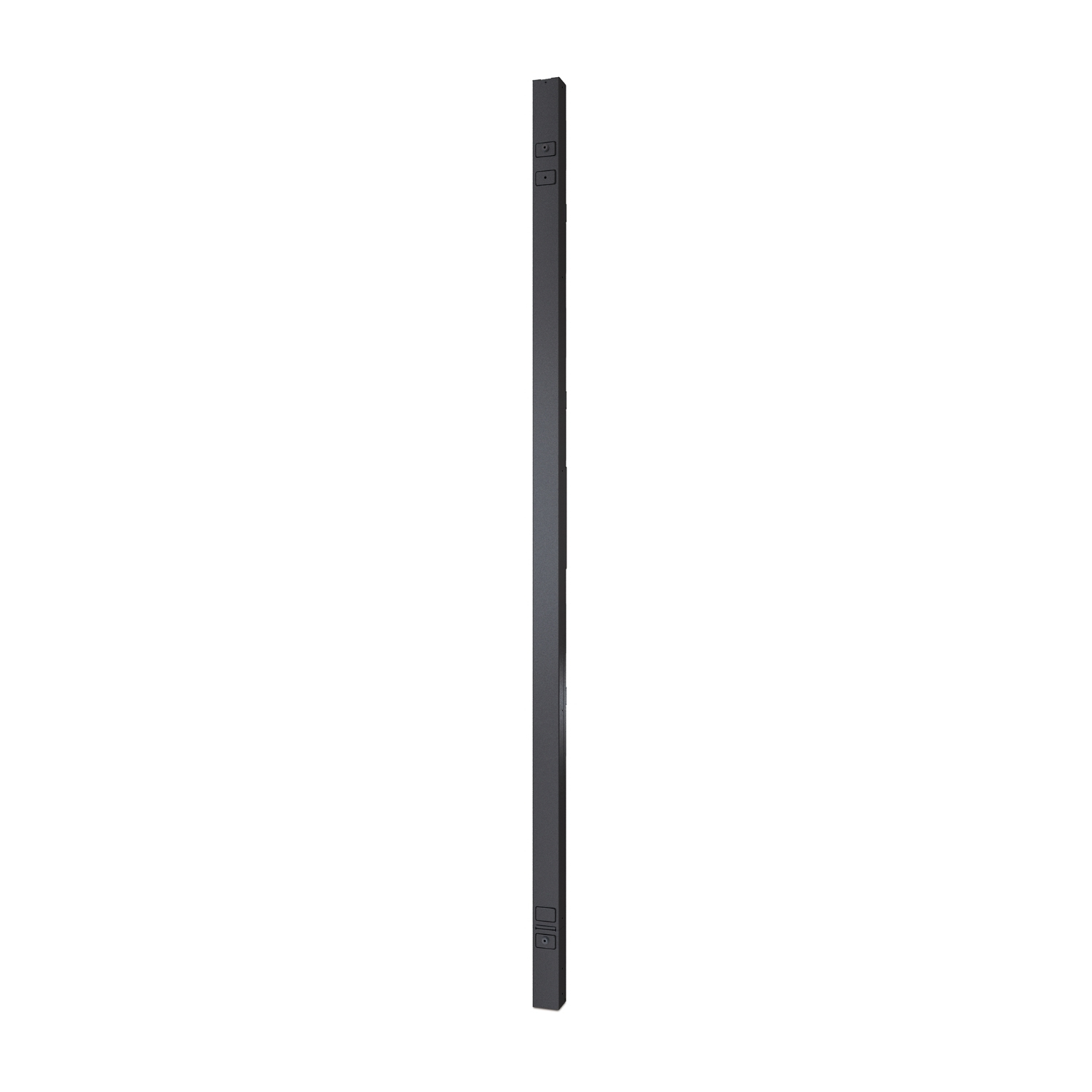

AP8832J power distribution unit (PDU) 24 AC outlet(s) Black
Model AP8832J
32 specifications
- Weight7.34 kg
- ColourBlack
- PDU typesMetered, Monitored
- AC outlets quantity24 AC outlet(s)
- LED indicatorsYes
- MonitoringCurrent, Power
Overview
- Weight
- 7.34 kg
- Colour
- Black
- PDU types
- Metered, Monitored
- AC outlets quantity
- 24 AC outlet(s)
- LED indicators
- Yes
- Monitoring
- Current, Power
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- AP8832J
- Part number
- AP8832J
- Also known as
- APC AP8832J power distribution unit (PDU) 24 AC outlet(s) Black
Specifications
32 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered, Monitored |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Display | LCD |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | NEMA L5-30P |
| AC outlet types | NEMA 5-15R |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100 - 120 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 30 A |
| Output voltage | 100 - 120 V |
| Load capacity | 3000 VA |
| Power protection features | Overload |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | PSE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 60 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55 mm |
| Depth | 44 mm |
| Height | 1791 mm |
| Weight | 7.34 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 9.15 kg |
| Package width | 108 mm |
| Package depth | 165 mm |
| Package height | 2006 mm |
