APC Rack PDU 2G, Metered-by-Outlet, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19

APC Rack PDU 2G, Metered-by-Outlet, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19

Model AP8481EAN 731304317609

36 specifications

Power11040 W
Weight8.21 kg
ColourBlack
PDU typesMetered, Metered-by-outlet
AC outlets quantity24 AC outlet(s)
LED indicatorsYes

See all specifications

Overview

Power: 11040 W
Weight: 8.21 kg
Colour: Black
PDU types: Metered, Metered-by-outlet
AC outlets quantity: 24 AC outlet(s)
LED indicators: Yes

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP8481
Part number: AP8481
EAN / UPC: 731304317609
Also known as: APC Rack PDU 2G, Metered-by-Outlet, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19

Specifications

36 specifications in 10 groups

Design

Specification	Value
PDU types	Metered, Metered-by-outlet
Rack capacity	0U
Mounting	Vertical
Product colour	Black

Ports & interfaces

Specification	Value
AC outlets quantity	24 AC outlet(s)

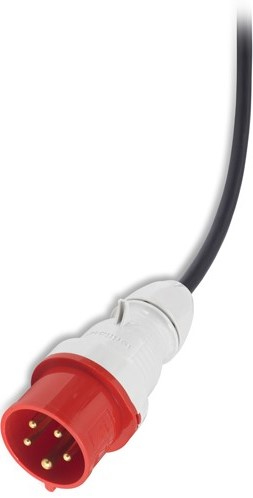

Power plug	IEC309
AC outlet types	C13 coupler, C19 coupler
Input connection type	IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
Output connections	21 x C13 & 3 x C19

Features

Specification	Value
LED indicators	Yes
Cable length	1.83 m

Management features

Specification	Value
Monitoring	Current, Power, Voltage
Management platform	Web, SNMP, Telnet

Power

Specification	Value
Nominal input voltage	400 V
AC input frequency	50 - 60 Hz
Nominal output voltage	230 V
Load capacity	11040 VA
Maximum input current per phase	16 A
Maximum total current draw per phase	16 A
Maximum power	11040 W

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL, VDE, REACH

Operational conditions

Specification	Value
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 15000 m

Weight & dimensions

Specification	Value
Width	56 mm
Depth	51 mm
Height	1829 mm
Weight	8.21 kg

Packaging data

Specification	Value
Package weight	10.5 kg
Package width	163 mm
Package depth	117 mm
Package height	2037 mm

Logistics data

Specification	Value
Total carbon footprint (kg of CO2e)	7251.82
