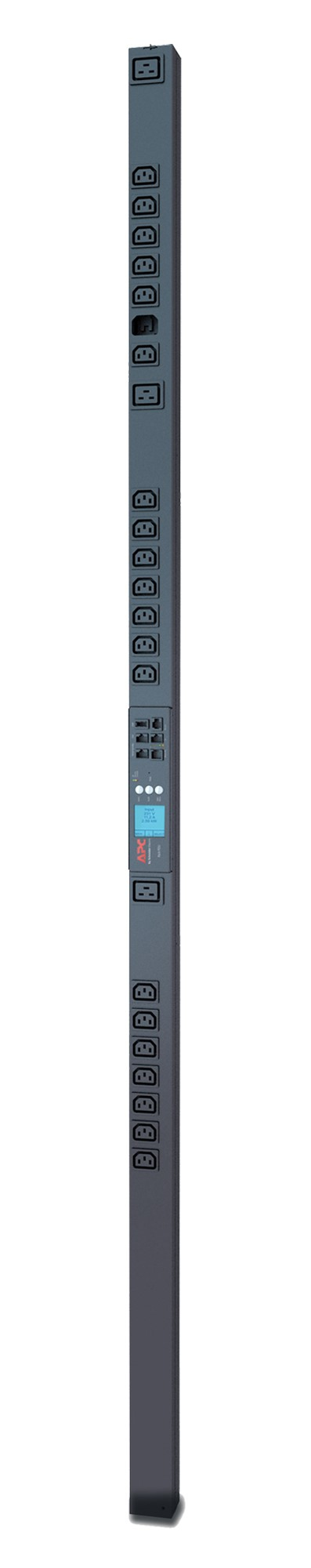

Rack PDU 2G, Metered-by-Outlet, ZeroU, 16A, 230V, (21) C13 & (3) C19
Model AP8459EU3EAN 731304317562
36 specifications
- Power3680 W
- Weight6.76 kg
- ColourBlack
- PDU typesMetered, Metered-by-outlet
- AC outlets quantity24 AC outlet(s)
- LED indicatorsYes
Overview
- Power
- 3680 W
- Weight
- 6.76 kg
- Colour
- Black
- PDU types
- Metered, Metered-by-outlet
- AC outlets quantity
- 24 AC outlet(s)
- LED indicators
- Yes
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- AP8459EU3
- Part number
- AP8459EU3
- EAN / UPC
- 731304317562
- Also known as
- APC Rack PDU 2G, Metered-by-Outlet, ZeroU, 16A, 230V, (21) C13 & (3) C19
Specifications
36 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| PDU types | Metered, Metered-by-outlet |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | IEC309 |
| AC outlet types | C13 coupler, C19 coupler |
| Output connections | 21 x C13 & 3 x C19 |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Cable length | 3 m |
Management features
| Specification | Value |
|---|---|
| Monitoring | Current, Power, Voltage |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 230 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum power | 3680 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL Listed, VCCI Class A, VDE REACH |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56 mm |
| Depth | 51 mm |
| Height | 1829 mm |
| Weight | 6.76 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 9.03 kg |
| Package width | 163 mm |
| Package depth | 117 mm |
| Package height | 2037 mm |
Logistics data
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 4525.81 |
