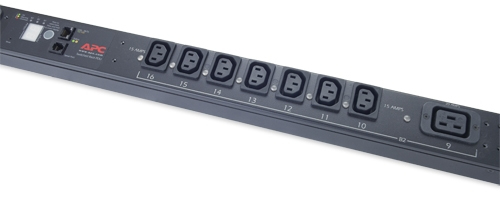

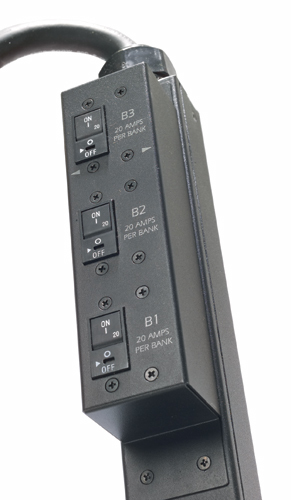

APC NetShelter Switched Rack PDU, Zero U, 12.5kW

APC NetShelter Switched Rack PDU, Zero U, 12.5kW

208V, 21 C13 and 3 C19 outlet, 3ft input cord

Model AP7968BEAN 731304331650

36 specifications

Weight8.08 kg
ColourBlack
PDU typesMonitored, Switched
AC outlets quantity24 AC outlet(s)
Cable length0.91 m
MonitoringCurrent

See all specifications

Overview

Weight: 8.08 kg
Colour: Black
PDU types: Monitored, Switched
AC outlets quantity: 24 AC outlet(s)
Cable length: 0.91 m
Monitoring: Current

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP7968B
Part number: AP7968B
EAN / UPC: 731304331650
Also known as: APC NetShelter Switched Rack PDU, Zero U, 12.5kW, 208V, 21 C13 and 3 C19 outlet, 3ft input cord

Specifications

36 specifications in 10 groups

Design

Specification	Value
PDU types	Monitored, Switched
Rack capacity	0U
Mounting	Vertical
Product colour	Black

Ports & interfaces

Specification	Value
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Input connection type	CS8365

Features

Specification	Value
Cable length	0.91 m

Management features

Specification	Value
Monitoring	Current
Outlet control	Recycle, Turn off
Firmware upgradeable	Yes
Firmware upgradeable via	Network

Power

Specification	Value
Nominal input voltage	208 V
AC input frequency	50 - 60 Hz
Maximum current	35 A
Nominal output voltage	208 V
Load capacity	12500 VA
Maximum total current draw per phase	35 A
Power protection features	Overload

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	cUL, CSA, FCC Part 15 Class A, ICES-003, UL 60950, UL, REACH

Operational conditions

Specification	Value
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Weight & dimensions

Specification	Value
Width	56 mm
Depth	89 mm
Height	1778 mm
Weight	8.08 kg

Packaging content

Specification	Value
Packaging content	Cord Retention Bracket(s), Documentation CD, Installation Guide, Rack Mounting Brackets, RS-232 configuration cable, Toolless Mounting Kit

Packaging data

Specification	Value
Package weight	11 kg
Package width	152 mm
Package depth	127 mm
Package height	2108 mm
