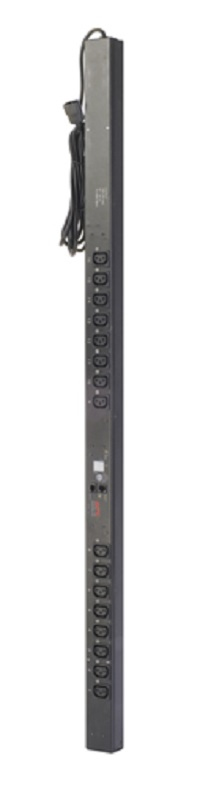

APC AP7950B power distribution unit (PDU) 13 AC outlet(s) 0U Black

APC AP7950B power distribution unit (PDU) 13 AC outlet(s) 0U Black

Model AP7950BEAN 731304331643

36 specifications

Power2300 W
Weight4.3 kg
ColourBlack
PDU typesMetered, Switched
AC outlets quantity13 AC outlet(s)
LED indicatorsYes

See all specifications

Overview

Power: 2300 W
Weight: 4.3 kg
Colour: Black
PDU types: Metered, Switched
AC outlets quantity: 13 AC outlet(s)
LED indicators: Yes

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP7950B
Part number: AP7950B
EAN / UPC: 731304331643
Also known as: APC AP7950B power distribution unit (PDU) 13 AC outlet(s) 0U Black

Specifications

36 specifications in 9 groups

Design

Specification	Value
PDU types	Metered, Switched
Rack capacity	0U
Mounting	Vertical
Product colour	Black

Ports & interfaces

Specification	Value
AC outlets quantity	13 AC outlet(s)
Power plug	C14 coupler
Output connections	Sixteen IEC 320 C13 outlets

Features

Specification	Value
LED indicators	Yes
Cable length	3.05 m

Management features

Specification	Value
Monitoring	Current, Power, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on

Power

Specification	Value
Nominal input voltage	200-230 V
AC input frequency	47/63 Hz
Maximum current	10 A
Nominal output voltage	230 V
Load capacity	2300 VA
Maximum input current per phase	10 A
Maximum total current draw per phase	10 A
Maximum power	2300 W

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	VDE, CE, EAC, EN55022, EN55024, AS/NZS CISPR 22

Operational conditions

Specification	Value
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 4500 m
Non-operating altitude	0 - 15000 m
Operating temperature (T-T)	23 - 113 °F

Weight & dimensions

Specification	Value
Width	55.6 mm
Depth	43.9 mm
Height	1244.6 mm
Weight	4.3 kg

Packaging data

Specification	Value
Package weight	5.2 kg
Package width	152.4 mm
Package depth	127 mm
Package height	2133.6 mm
