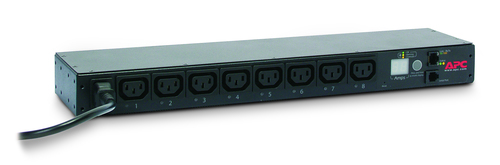

APC NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW

APC NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW

230V 10A or 2.5kW 208V 12A, 8 C13 outlets, C14 cord

Model AP7920BEAN 731304331612

37 specifications

Power2300 W
Weight2.27 kg
ColourBlack
PDU typesMetered, Switched
AC outlets quantity8 AC outlet(s)
Cable length1.98 m

See all specifications

Overview

Power: 2300 W
Weight: 2.27 kg
Colour: Black
PDU types: Metered, Switched
AC outlets quantity: 8 AC outlet(s)
Cable length: 1.98 m

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP7920B
Part number: AP7920B
EAN / UPC: 731304331612
Also known as: APC NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW 208V 12A, 8 C13 outlets, C14 cord

Specifications

37 specifications in 11 groups

Design

Specification	Value
PDU types	Metered, Switched
Rack capacity	0U/1U
Mounting	Horizontal/Vertical
Product colour	Black

Ports & interfaces

Specification	Value
AC outlets quantity	8 AC outlet(s)
Power plug	C14 coupler
AC outlet types	C13 coupler
Input connection type	IEC-320 C14

Features

Specification	Value
Cable length	1.98 m

Management features

Specification	Value
Monitoring	Current, Power, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on

Power

Specification	Value
Nominal input voltage	200-230 V
AC input frequency	50 - 60 Hz
Maximum current	10 A
Nominal output voltage	208-230 V
Load capacity	2300 VA
Maximum input current per phase	10 A
Maximum total current draw per phase	10 A
Maximum power	2300 W

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	1 - 15000 m

Weight & dimensions

Specification	Value
Width	445 mm
Depth	108 mm
Height	44 mm
Weight	2.27 kg

Packaging content

Specification	Value
Packaging content	Installation Guide, Rack Mounting Brackets, User Manual

Packaging data

Specification	Value
Package weight	3.45 kg
Package width	470 mm
Package depth	343 mm
Package height	70 mm

Logistics data

Specification	Value
Total carbon footprint (kg of CO2e)	915.89
