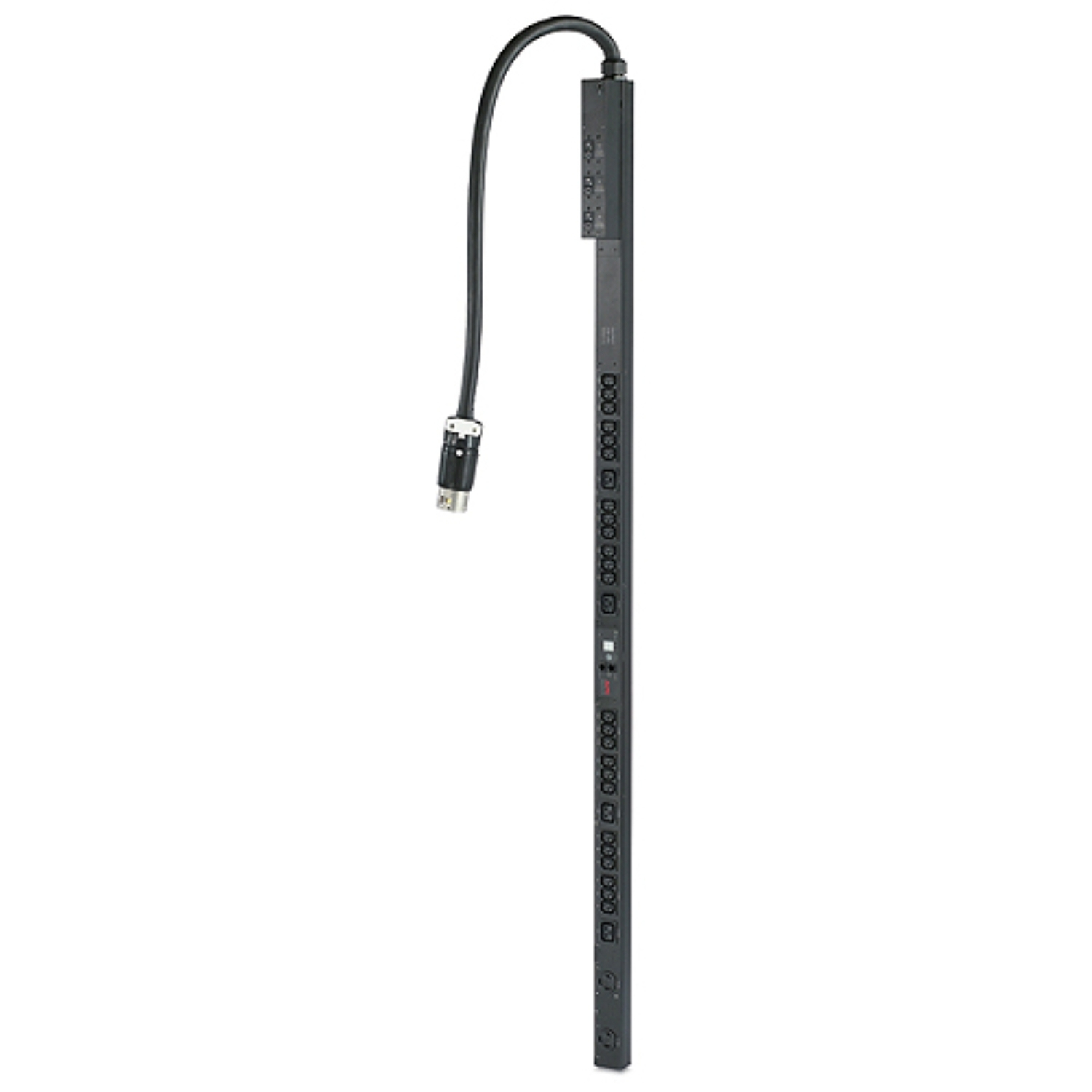

APC AP7869B power distribution unit (PDU) 30 AC outlet(s) 0U Black

APC AP7869B power distribution unit (PDU) 30 AC outlet(s) 0U Black

Model AP7869BEAN 731304331544

33 specifications
  • Power14400 W
  • TypeThree-phase
  • Weight10.4 kg
  • ColourBlack
  • PDU typesMetered
  • AC outlets quantity30 AC outlet(s)
See all specifications

Overview

Power
14400 W
Type
Three-phase
Weight
10.4 kg
Colour
Black
PDU types
Metered
AC outlets quantity
30 AC outlet(s)
Brand
APC
Model
AP7869B
Part number
AP7869B
EAN / UPC
731304331544
Also known as
APC AP7869B power distribution unit (PDU) 30 AC outlet(s) 0U Black

Specifications

33 specifications in 8 groups

Design

PDU typesMetered
TypeThree-phase
Rack capacity0U
MountingHorizontal/Vertical
Product colourBlack

Ports & interfaces

AC outlets quantity30 AC outlet(s)
Power plugCS8365
AC outlet typesC13 coupler, C19 coupler, NEMA L6-30R

Features

Cable length0.91 m
Compatible productsFCC Part 15 class A ICES-003 UL 60950

Power

Nominal input voltage208 V
AC input frequency50 - 60 Hz
Maximum current50 A
Nominal output voltage208 V
Load capacity14400 VA
Number of phases3
Maximum power14400 W

Operational conditions

Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Operating temperature (T-T)23 - 113 °F

Weight & dimensions

Width56 mm
Depth95 mm
Height1778 mm
Weight10.4 kg

Packaging content

ManualYes
Packaging contentCord retention bracket(s) Documentation CD Installation guide Rack Mounting brackets RS-232 configuration cable Toolless Mounting Kit

Packaging data

Package weight14.3 kg
Package width79 mm
Package depth311 mm
Package height2057 mm
