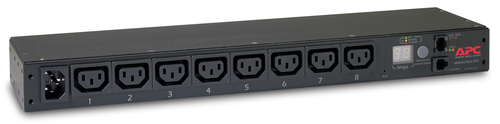

APC AP7820B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black

APC AP7820B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black

Model AP7820BEAN 731304331506

35 specifications

Power2300 W
Weight1.73 kg
ColourBlack
PDU typesMetered
AC outlets quantity8 AC outlet(s)
LED indicatorsYes

See all specifications

Overview

Power: 2300 W
Weight: 1.73 kg
Colour: Black
PDU types: Metered
AC outlets quantity: 8 AC outlet(s)
LED indicators: Yes

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP7820B
Part number: AP7820B
EAN / UPC: 731304331506
Also known as: APC AP7820B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black

Specifications

35 specifications in 9 groups

Design

Specification	Value
PDU types	Metered
Rack capacity	0U/1U
Mounting	Horizontal/Vertical
Product colour	Black

Ports & interfaces

Specification	Value
AC outlets quantity	8 AC outlet(s)
Power plug	C14 coupler
AC outlet types	C13 coupler
Input connection type	IEC-320 C14

Features

Specification	Value
LED indicators	Yes
Cable length	1.98 m

Management features

Specification	Value
Monitoring	Current, Power, Voltage

Power

Specification	Value
Nominal input voltage	208-230 V
AC input frequency	50 - 60 Hz
Maximum current	15 A
Nominal output voltage	208-230 V
Load capacity	2300 VA
Maximum input current per phase	15 A
Maximum total current draw per phase	10 A
Maximum power	2300 W

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI

Operational conditions

Specification	Value
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Weight & dimensions

Specification	Value
Width	444 mm
Depth	102 mm
Height	44 mm
Weight	1.73 kg

Packaging data

Specification	Value
Package weight	2.91 kg
Package width	470 mm
Package depth	337 mm
Package height	64 mm
