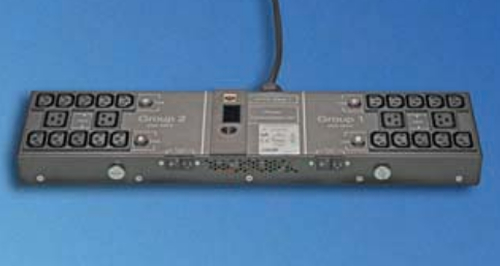

APC AP7811B power distribution unit (PDU) 16 AC outlet(s) 2U Black

APC AP7811B power distribution unit (PDU) 16 AC outlet(s) 2U Black

Model AP7811BEAN 731304331490

32 specifications

Weight3.36 kg
ColourBlack
PDU typesMetered
AC outlets quantity16 AC outlet(s)
LED indicatorsYes
MonitoringCurrent

See all specifications

Overview

Weight: 3.36 kg
Colour: Black
PDU types: Metered
AC outlets quantity: 16 AC outlet(s)
LED indicators: Yes
Monitoring: Current

Brand: APC
Category: Power Distribution Units (PDUs)
Model: AP7811B
Part number: AP7811B
EAN / UPC: 731304331490
Also known as: APC AP7811B power distribution unit (PDU) 16 AC outlet(s) 2U Black

Specifications

32 specifications in 11 groups

Design

Specification	Value
PDU types	Metered
Rack capacity	2U
Product colour	Black
On/off switch	Yes

Ports & interfaces

Specification	Value
AC outlets quantity	16 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Input connection type	NEMA L6-30P

Features

Specification	Value
LED indicators	Yes
Cable length	3.66 m

Management features

Specification	Value
Monitoring	Current

Power

Specification	Value
Maximum current	30 A
Nominal output voltage	208 V
Maximum total current draw per phase	24 A
Power protection features	Overload

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	cUL, CSA, FCC 15 A, ICES-003, PSE, UL 60950, UL, REACH

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Weight & dimensions

Specification	Value
Width	444 mm
Depth	112 mm
Height	88 mm
Weight	3.36 kg

Packaging content

Specification	Value
Packaging content	Cord Retention Bracket(s), Installation Guide, Rack Mounting Brackets, User Manual

Packaging data

Specification	Value
Package weight	5.42 kg
Package width	508 mm
Package depth	368 mm
Package height	140 mm

Logistics data

Specification	Value
Total carbon footprint (kg of CO2e)	7045.77
