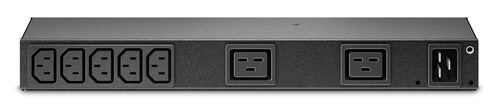

AP6120A power distribution unit (PDU) 7 AC outlet(s) 0U/1U Black
Model AP6120AEAN 731304327851
25 specifications
- Power3680 W
- TypeSingle-phase
- Weight1.56 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity7 AC outlet(s)
Overview
- Power
- 3680 W
- Type
- Single-phase
- Weight
- 1.56 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 7 AC outlet(s)
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- AP6120A
- Part number
- AP6120A
- EAN / UPC
- 731304327851
- Also known as
- APC AP6120A power distribution unit (PDU) 7 AC outlet(s) 0U/1U Black
Specifications
25 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 7 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Nominal output voltage | 100-240 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum power | 3680 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | UL/C-UL, VDE, CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 4.36 mm |
| Depth | 9.29 mm |
| Height | 38.8 mm |
| Weight | 1.56 kg |
