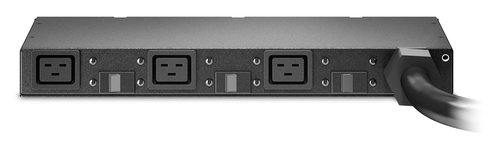

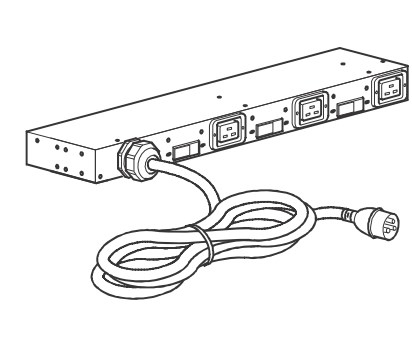

APC AP6038A power distribution unit (PDU) 3 AC outlet(s) 0U/1U Black
Model AP6038AEAN 731304321972
24 specifications
- Power11000 W
- Weight5.4 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity3 AC outlet(s)
- Cable length3.65 m
Overview
- Power
- 11000 W
- Weight
- 5.4 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 3 AC outlet(s)
- Cable length
- 3.65 m
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- AP6038A
- Part number
- AP6038A
- EAN / UPC
- 731304321972
- Also known as
- APC AP6038A power distribution unit (PDU) 3 AC outlet(s) 0U/1U Black
Specifications
24 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 3 AC outlet(s) |
| AC outlet types | C19 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3.65 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 48 A |
| Nominal output voltage | 200-240 V |
| Load capacity | 11040 VA |
| Maximum input current per phase | 48 A |
| Maximum power | 11000 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | VDE, CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 39.5 mm |
| Depth | 19.5 mm |
| Height | 50 mm |
| Weight | 5.4 kg |
