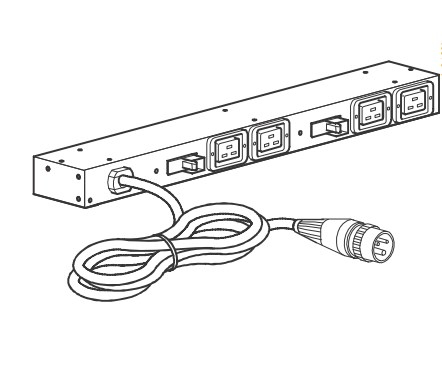

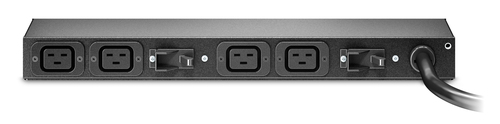

APC AP6032A power distribution unit (PDU) 4 AC outlet(s) 0U/1U Black
Model AP6032AEAN 731304327820
26 specifications
- Power7680 W
- TypeSingle-phase
- Weight2.78 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity4 AC outlet(s)
Overview
- Power
- 7680 W
- Type
- Single-phase
- Weight
- 2.78 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 4 AC outlet(s)
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- AP6032A
- Part number
- AP6032A
- EAN / UPC
- 731304327820
- Also known as
- APC AP6032A power distribution unit (PDU) 4 AC outlet(s) 0U/1U Black
Specifications
26 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 4 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | C19 coupler |
Features
| Specification | Value |
|---|---|
| Cable length | 3.65 m |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 200-240 V |
| Load capacity | 7680 VA |
| Maximum input current per phase | 32 A |
| Maximum power | 7680 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | VDE, CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 4.36 mm |
| Depth | 9.29 mm |
| Height | 43.8 mm |
| Weight | 2.78 kg |
