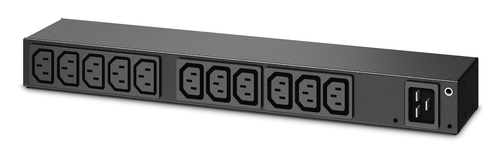

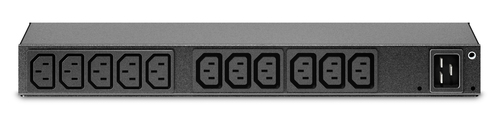

APC AP6020A power distribution unit (PDU) 13 AC outlet(s) 0U/1U Black
Model AP6020AEAN 731304327806
32 specifications
- Power3680 W
- TypeSingle-phase
- Weight1.5 kg
- ColourBlack
- PDU typesBasic
- AC outlets quantity13 AC outlet(s)
Overview
- Power
- 3680 W
- Type
- Single-phase
- Weight
- 1.5 kg
- Colour
- Black
- PDU types
- Basic
- AC outlets quantity
- 13 AC outlet(s)
- Brand
- APC
- Category
- Power Distribution Units (PDUs)
- Model
- AP6020A
- Part number
- AP6020A
- EAN / UPC
- 731304327806
- Also known as
- APC AP6020A power distribution unit (PDU) 13 AC outlet(s) 0U/1U Black
Specifications
32 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlets quantity | 13 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
| Output connections | IEC 320 C13 |
Power
| Specification | Value |
|---|---|
| Nominal input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum power | 3680 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 44 mm |
| Depth | 93 mm |
| Height | 388 mm |
| Weight | 1.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.02 kg |
| Package width | 210 mm |
| Package depth | 76 mm |
| Package height | 436 mm |
Logistics data
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 38.04 |
